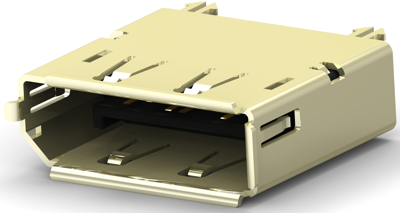

DisplayPort Connectors, 2041441-1, TE Connectivity
Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Connector Type: Connector Assembly, PCB Mount Orientation: Vertical, Number of Positions: 20, Shell Material: Phosphor Bronze, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 0.5 A, Termination Method to Printed Circuit Board: Through Hole-Solder, PCB Mount Location: Top, Screw Flange: Without, PCB Mount Retention Type: Boardlock, Connector Mounting Type: Board Mount, Centerline (Pitch): 1 mm, Housing Color: Black, Tail Length: 2.1 mm, Operating Temperature Range: -40 – 85 °C,-40 – 85 °C, Pick & Place: Without Pick and Place Cover, Circuit Application: Signal, Flammability Rating: UL 94V-0, Packaging Method: Box & Tray,Tray, Comment: Dual inline package
