2040305-1 | TE Connectivity

USB-A plug, 4 pole, USB 2.0, 2040305-1

Order No.: 38P6383
EAN: 4099889814811
MPN:
2040305-1

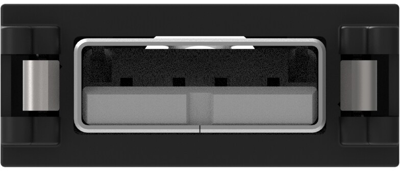

2040305-1 TE Connectivity USB Connectors, PC Connectors Image 1

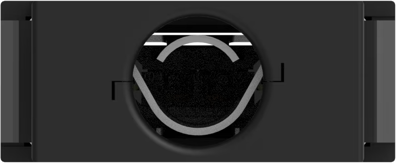

2040305-1 TE Connectivity USB Connectors, PC Connectors Image 2

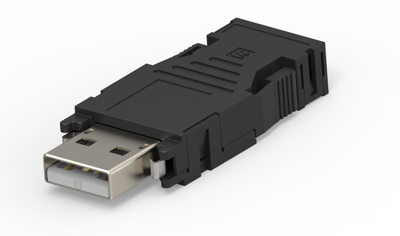

2040305-1 TE Connectivity USB Connectors, PC Connectors Image 3

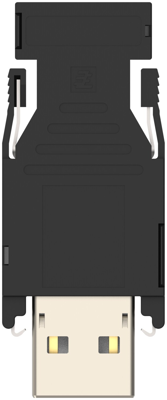

2040305-1 TE Connectivity USB Connectors, PC Connectors Image 4

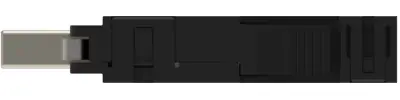

2040305-1 TE Connectivity USB Connectors, PC Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
910.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
1.8207 €

USB Connectors, 2040305-1, TE Connectivity

Integral Locking Latch: With, USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Plug, Connector System: Wire-to-Wire, Number of Ports: 1, Number of Positions: 4, Connector Profile: Standard, Shell Plating Material: Nickel over Copper, Contact Current Rating (Max): 1.5 A, Contact Mating Area Plating Thickness: 0.76 µm, Locating Posts: Without, PCB Mount Location: Cable Mount, PCB Mount Retention Type: None, Connector Mounting Type: Cable Mount (Free-Hanging), Body Orientation: Straight, Housing Color: Black, Soldering Temperature (Max): 350 °C, Operating Temperature Range: -55 – 85 °C, Assembly Process Feature: None, Circuit Application: Power, Signal & Data, Industry Standard: USB 2.0, Degree of Protection: IP20, Packaging Method: Bag, Packaging Quantity: 500, Comment: Latching USB Plug

Technical specifications
Assembly cable assembly
USB Standard USB 2.0
Pin number 4 pole
Version A plug
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
