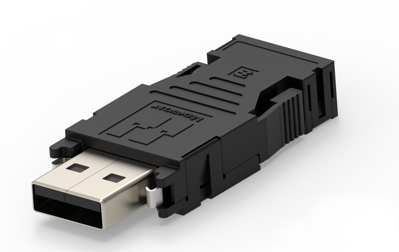

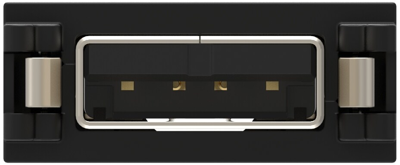

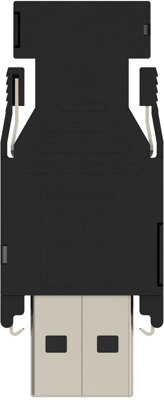

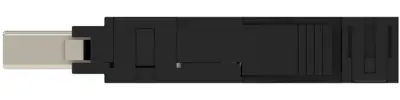

USB Connector, 1827525-1, TE Connectivity
USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Plug, Connector System: Wire-to-Wire, Sealable: No, Number of Ports: 1, Number of Positions: 4, Connector Profile: Standard, Shell Plating Material: Nickel over Copper, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: 0.76 µm, Locating Posts: Without, PCB Mount Location: Cable Mount, PCB Mount Retention Type: None, Connector Mounting Type: Cable Mount (Free-Hanging), Body Orientation: Straight, Housing Color: Black, Soldering Temperature (Max): 350 °C, Mating Cycles (Max): 1500, Operating Temperature Range: -55 – 85 °C, Assembly Process Feature: None, Circuit Application: Power, Signal & Data, Degree of Protection: IP20, Packaging Method: Box, Comment: Latching USB Plug
