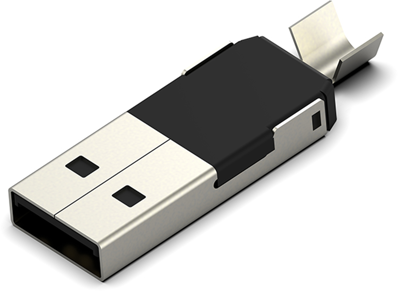

USB Connectors, 1734372-1, TE Connectivity
USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Plug, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of Mounting Legs: 0, Number of Ports: 1, Number of Positions: 4, Connector Profile: Standard, Shell Plating Material: Nickel over Copper, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: 0.1 µm, Locating Posts: Without, PCB Mount Location: Cable Mount, PCB Connector Seating: Flush, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2 mm, 2.5 mm, Housing Color: Black, Soldering Temperature (Max): 240 °C, Mating Cycles (Max): 1500, Operating Temperature Range: -40 – 80 °C, Halogen Free: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Bag/Box, Packaging Quantity: 3000
