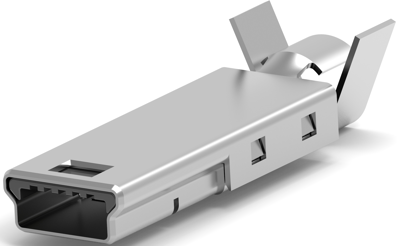

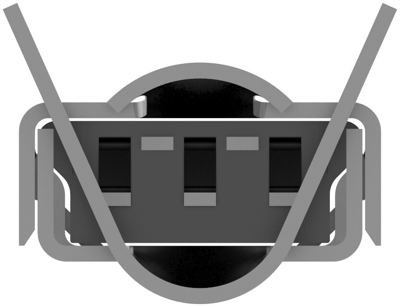

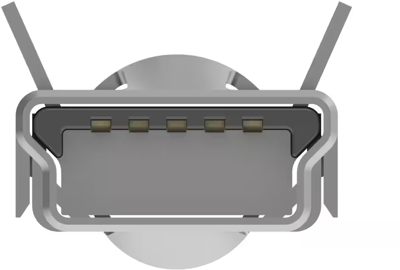

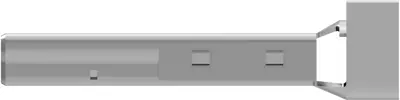

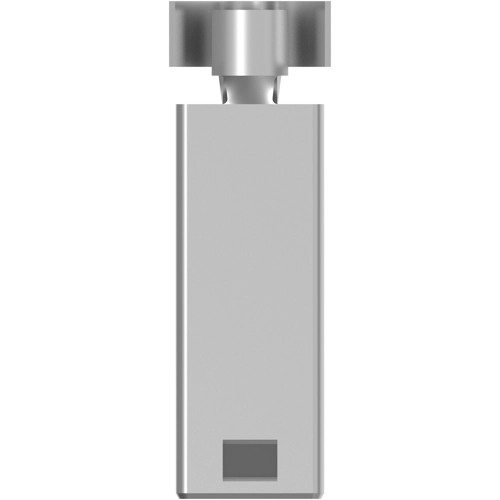

USB Connectors, 1734205-1, TE Connectivity
Integral Locking Latch: Without, USB Connector Type: B, USB Version: 2.0, Connector & Housing Type: Plug, Connector System: Cable-to-Board, Number of Ports: 1, Number of Positions: 5, Offset: 0 mm, Connector Profile: Mini, Shell Plating Material: Nickel over Copper, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: 0.76 µm, Locating Posts: Without, PCB Mount Location: Cable Mount, PCB Connector Seating: Flush, PCB Mount Retention Type: None, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 0.8 mm, Housing Color: Black, Mating Cycles (Max): 5000, Operating Temperature Range: -40 – 85 °C, Halogen Free: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Bag, Packaging Quantity: 1000
