1977477-2 | TE Connectivity
Terminal block, 2 pole, 0.326-3.31 mm², black, PCB connection, 15 A, 1977477-2
Unit Price (€ / pc.)
2.6537 € *
Available in 5 Days: 2,816 pcs. - if ordered today
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.4633 €
50 pcs.
2.2967 €
100 pcs.
2.1539 €
*incl. VAT plus shipping costs
Subject to prior sale

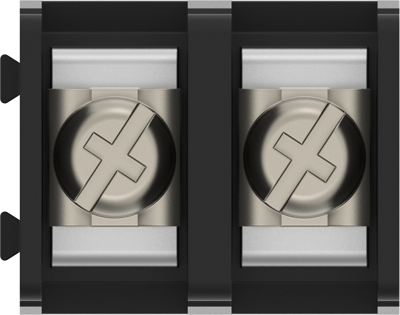

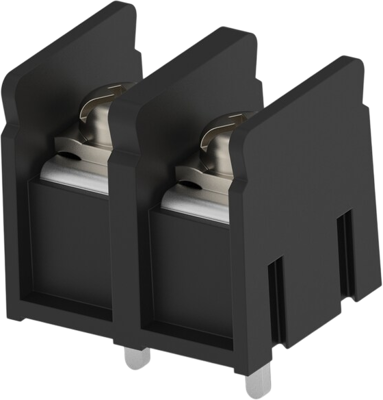

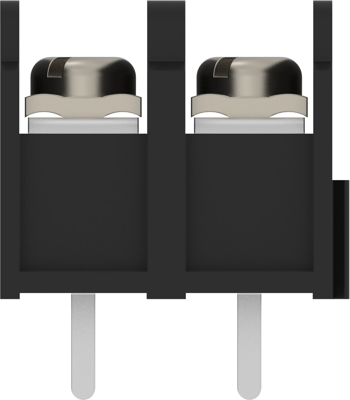

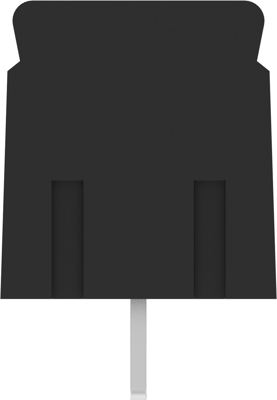

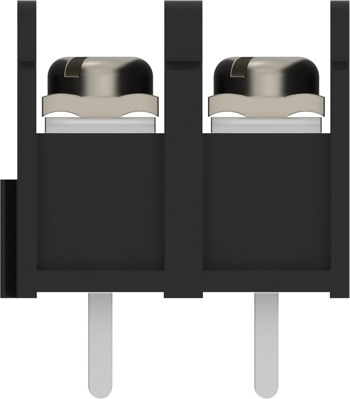

Terminal block, 1977477-2, TE Connectivity
2 Position Barrier Strip, Dual Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 8.26 mm Centerline.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| AWG cross-section | AWG 22-16 | |
| Version | terminal block | |
| Connection | PCB connection | |
| Pin number | 2 pole | |
| Colour | black | |
| Cable cross-section | 0.326-3.31 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
