1776293-1 | TE Connectivity

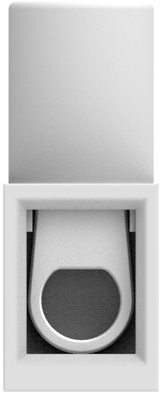

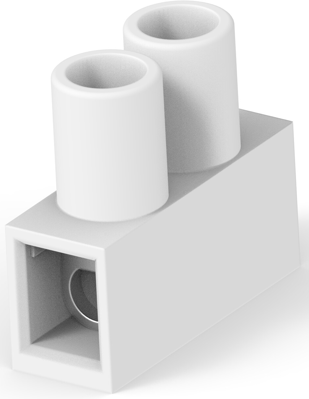

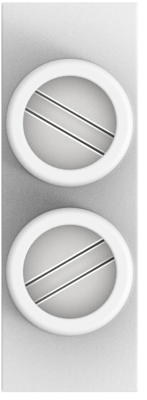

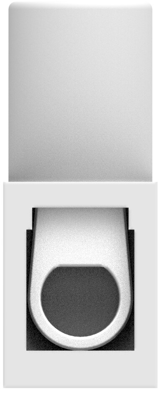

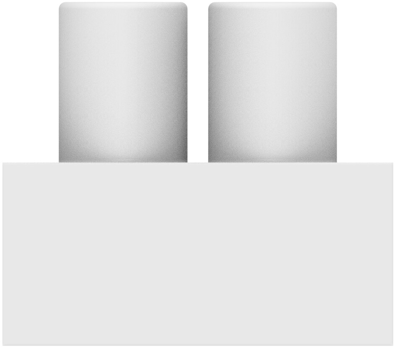

Connection terminal, 1 pole, 0.12-3.3 mm², natural, screw connection, 30 A, 1776293-1
Order No.: 71P3467
EAN: 4099891743192
MPN:
1776293-1
Unit Price (€ / pc.)
0.5593 € *
Available in 5 Days: 14,981 pcs. - if ordered today
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
10 pcs.
0.5117 €
25 pcs.
0.4879 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1776293-1, TE Connectivity
The 1776293-1 is a modular design that is cut into smaller sections without altering electrical properties. This product with wire protectors virtually eliminate twisting and breakage of stranded wire during connection.
Features
- Mounting holes between every circuit
- High circuit density
Applications
- Motor Controls
- Power Supplies
- Telecom
- Valve Actuators
- Spa Controllers
- Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| AWG cross-section | AWG 26 to 12 | |
| Pin number | 1 pole | |
| Colour | natural | |
| Version | connection terminal | |
| Cable cross-section | 0.12-3.3 mm² | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
