1437664-4 | TE Connectivity
Terminal block, 2 pole, 0.3-3.0 mm², black, PCB connection, 20 A, 1437664-4
Unit Price (€ / pc.)
1.4280 € *
Available in 5 Days: 5,465 pcs. - if ordered today
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
10 pcs.
1.3209 €
50 pcs.
1.2257 €
100 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

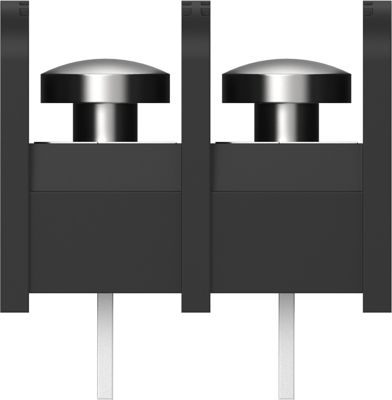

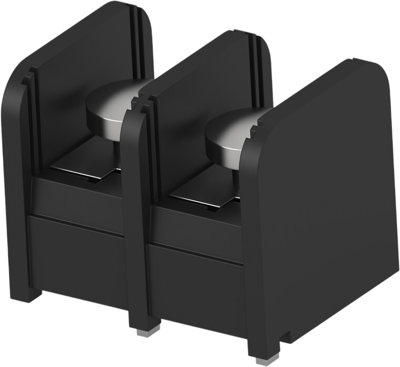

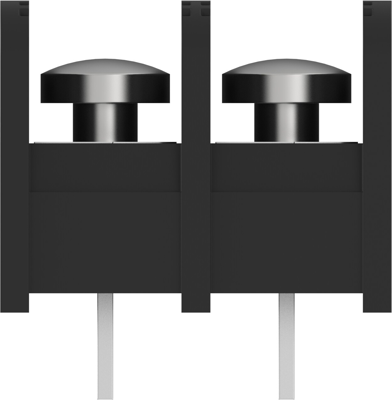

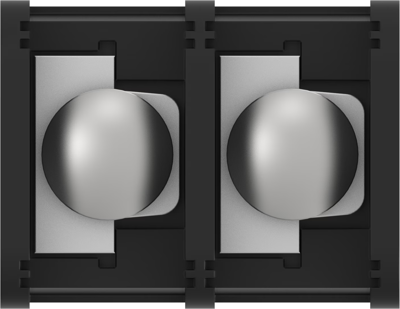

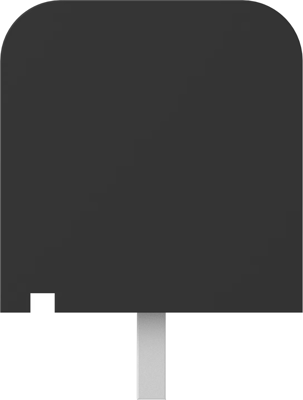

Terminal block, 1437664-4, TE Connectivity
2 Position Barrier Strip, Dual Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 9.53 mm Centerline, 1 Row.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 20 A | |
| AWG cross-section | AWG 22-12 | |
| Version | terminal block | |
| Connection | PCB connection | |
| Pin number | 2 pole | |
| Colour | black | |
| Cable cross-section | 0.3-3.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
