1-1986469-2 | TE Connectivity
Connection terminal, 12 pole, 2.0-14 mm², brown, screw connection, 65 A, 1-1986469-2
Order No.: 71P1104
EAN: 4099891743185
MPN:
1-1986469-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
90.1901 € *
Available in 12 Days: 178 pcs. - if ordered today
Total Price:
90.19 € *
Price list
Quantity
Price per unit*
1 pcs.
90.1901 €
2 pcs.
87.6792 €
5 pcs.
85.3111 €
*incl. VAT plus shipping costs
Subject to prior sale

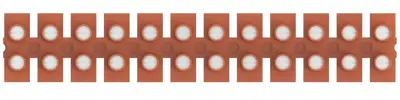

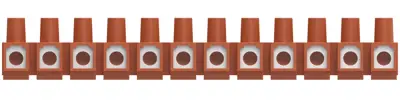

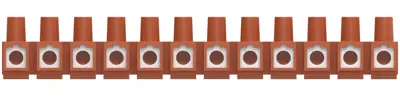

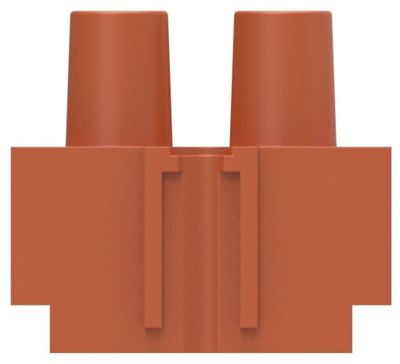

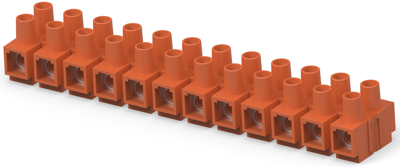

PCB Terminal, 1-1986469-2, TE Connectivity
Barrier strip, Wire-to-Wire, 12 Position, 14.5 mm Centerline, 1 Row, 600 V, 14-6 AWG Wire size, 2- 14 mm² Wire size, Wire & Cable, Power.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection terminal | |
| Pin number | 12 pole | |
| Cable cross-section | 2.0-14 mm² | |
| Colour | brown | |
| Connection | screw connection | |
| Rated current | 65 A | |
| AWG cross-section | AWG 14-6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
