CRG0805F10K | TE Connectivity
Resistor, thick film, SMD 0805 (2012), 10 kΩ, 0.125 W, ±1 %, CRG0805F10K
Unit Price (€ / pc.)
0.0417 € *
Available: 21,884 pcs.
Available in 5 Days: 250,000 pcs. - if ordered today
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0417 €
10 pcs.
0.0357 €
100 pcs.
0.0262 €
300 pcs.
0.0155 €
1000 pcs.
0.0118 €
*incl. VAT plus shipping costs
Subject to prior sale

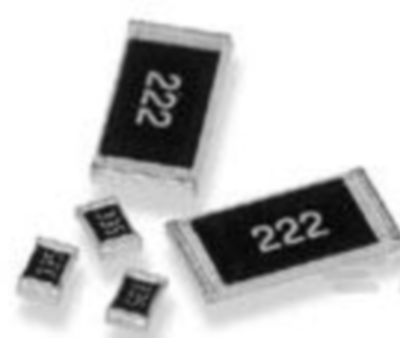

Thick Film Chip Resistor, CRG0805F10K, TE Connectivity
The CRG0805F10K is a thick film resistor with high power to size ratio, ideally suited to industrial and general purpose use.
Features
- Terminal finish matte Sn over Ni
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| Technology | thick film | |
| Width | 1.2 mm | |
| Height | 0.65 mm | |
| Power | 0.125 W | |
| Length | 2 mm | |
| Design | SMD 0805 (2012) | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 10 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
