7-2176316-4 | TE Connectivity

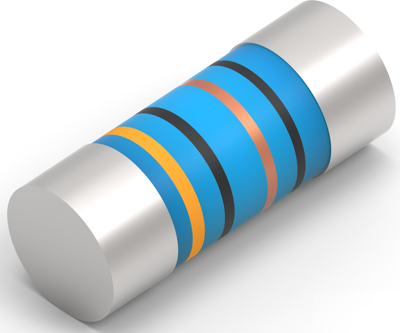

Resistor, thin film, SMD 0207, MELF, 100 kΩ, 1 W, ±1 %, 7-2176316-4
As a private customer, you can buy this item as soon as we have it back in stock.
Metal film precision, 7-2176316-4, TE Connectivity
The 7-2176316-4 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR. This product comes in three sizes and six power rating ,and is also lead free and RoHS compliant.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Measurement/Testing equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 1 W | |
| Design | SMD 0207 | |
| max. operating temperature | 155 °C | |
| Technology | thin film | |
| diameter | 2.2 mm | |
| Length | 5.9 mm | |
| ohmic resistance | 100 kΩ | |
| min. operating temperature | -55 °C | |
| Enclosure | MELF | |
| Temperature coefficient | ±50 ppm/°K | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
