6-1622826-4 | TE Connectivity
Resistor, thick film, SMD 0402 (1005), 0 Ω, 0.063 W, ±1 %, 6-1622826-4
Order No.: 38P5208
EAN: 4099879218025
MPN:
6-1622826-4
CRG0402ZR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0019 € *
Standard delivery time from the manufacturer is: 15 Weeks

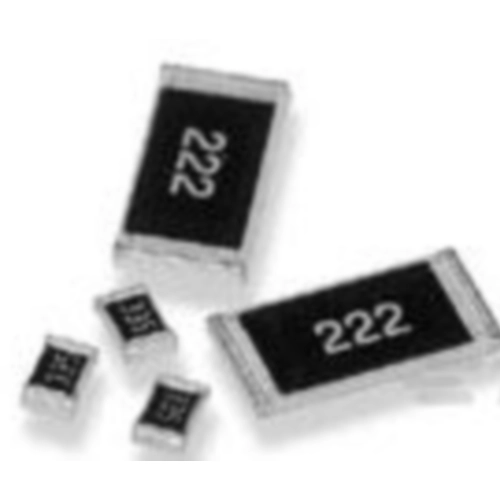

Thick Film Chip Resistor, 6-1622826-4, TE Connectivity
The 6-1622826-4 is a thick film resistor with high power to size ratio, ideally suited to industrial and general purpose use.
Features
- Terminal finish matte Sn over Ni
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 0 Ω | |
| Tolerance | ±1 % | |
| Power | 0.063 W | |
| Design | SMD 0402 (1005) | |
| Temperature coefficient | ±200 ppm/K | |
| Technology | thick film | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| Length | 1 mm | |
| Width | 0.5 mm | |
| Height | 0.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | CN |
| Original Packaging | Reel with 10,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
