5-1879130-5 | TE Connectivity
Resistor, thin film, SMD 0402 (1005), 4.12 kΩ, 0.063 W, ±0.1 %, 5-1879130-5
Unit Price (€ / pc.)
1.1543 € *
Available in 5 Days: 250 pcs. - if ordered today

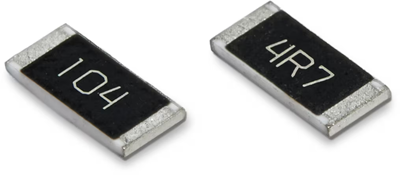

Chip resistor, 5-1879130-5, TE Connectivity
The 5-1879130-5 is a high stability precision chip resistor, that is produced with three sputtered layers giving optimum performance.
Features
- Tolerance down to 0.01%
- Terminal finish - electroplated 100% matte Sn
Applications
- Communications
- Industrial control
- Instrumentation
- Medical
Technical specifications
| ohmic resistance | 4.12 kΩ | |
| min. operating temperature | -55 °C | |
| Length | 1 mm | |
| Design | SMD 0402 (1005) | |
| max. operating temperature | 155 °C | |
| Power | 0.063 W | |
| Temperature coefficient | ±10 ppm/°K | |
| Width | 0.5 mm | |
| Height | 0.3 mm | |
| Tolerance | ±0.1 % | |
| Technology | thin film |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
