2176325-4 | TE Connectivity
Resistor, thick film, SMD 0402 (1005), 18 Ω, 0.125 W, ±1 %, 2176325-4
Unit Price (€ / pc.)
0.0250 € *
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
249.90 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0250 €
20000 pcs.
0.0155 €
*incl. VAT plus shipping costs
Subject to prior sale

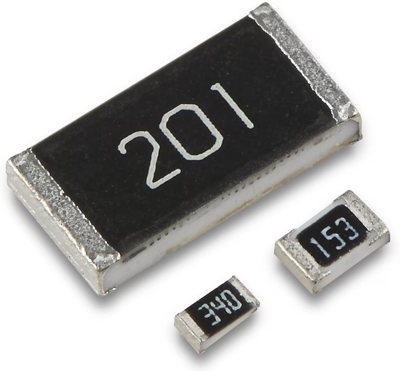

Chip resistor, 2176325-4, TE Connectivity
The 2176325-4 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.
Features
- Small size and light weight
- Pulse Rated
- Terminal finish matte Sn over Ni
Technical specifications
| Temperature coefficient | ±200 ppm/°K | |
| Technology | thick film | |
| Width | 0.5 mm | |
| Height | 0.35 mm | |
| Power | 0.125 W | |
| Length | 1 mm | |
| Design | SMD 0402 (1005) | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 18 Ω |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
