2-2176334-2 | TE Connectivity
Resistor, thin film, SMD 0204, mini MELF, 20 kΩ, 0.4 W, ±1 %, 2-2176334-2
Unit Price (€ / pc.)
0.0274 € *
Available in 5 Days: 18,000 pcs. - if ordered today

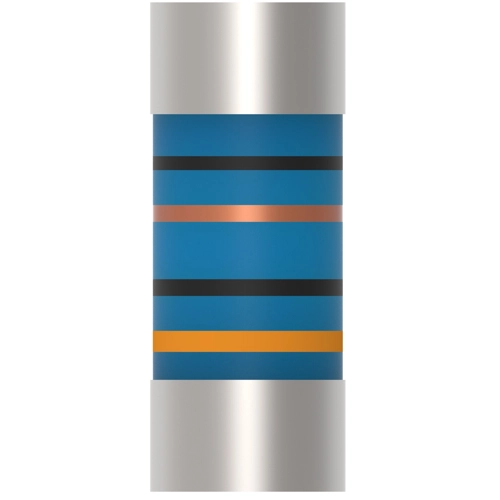

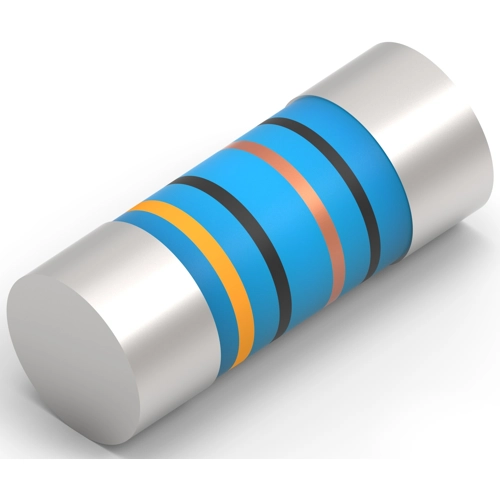

Metal film precision, 2-2176334-2, TE Connectivity
The 2-2176334-2 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR. This product comes in three sizes and six power rating ,and is also lead free and RoHS compliant.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Measurement/Testing equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 1.4 mm | |
| Design | SMD 0204 | |
| Power | 0.4 W | |
| Technology | thin film | |
| Temperature coefficient | ±50 ppm/°K | |
| ohmic resistance | 20 kΩ | |
| Enclosure | mini MELF | |
| max. operating temperature | 155 °C | |
| Tolerance | ±1 % | |
| Length | 3.5 mm | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
