2-2176323-4 | TE Connectivity

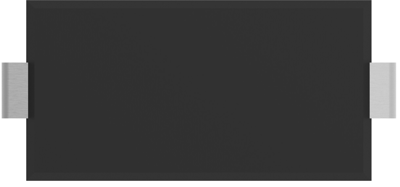

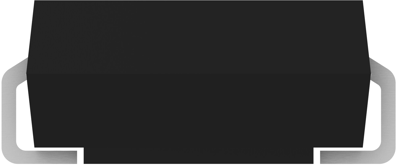

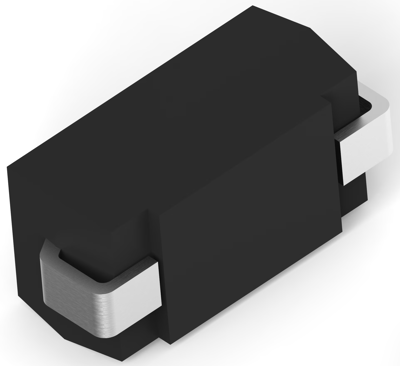

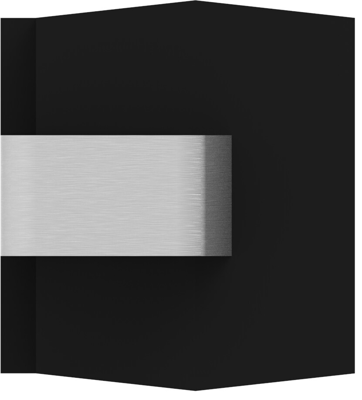

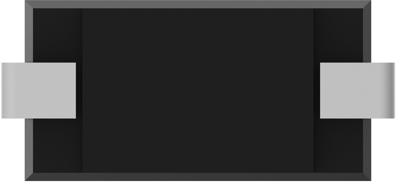

Resistor, metal film, SMD, 8.2 MΩ, 2 W, ±5 %, 2-2176323-4
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 11,000 pcs. - if ordered today
Total Price:
321.30 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.3213 €
10000 pcs.
0.3011 €
*incl. VAT plus shipping costs
Subject to prior sale
Resistor, 2-2176323-4, TE Connectivity
The 2-2176323-4 provides high stable performance against environmental conditions and overload. This product has flameproof UL94V0 molded package, and is resistant to sulfuration, heat and humidity.
Features
- High surge withstanding and pulse withstanding performance
- Excellent mechanical strength and electrical stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 8.2 MΩ | |
| max. operating temperature | 200 °C | |
| Length | 10.5 mm | |
| min. operating temperature | -65 °C | |
| Height | 5 mm | |
| Technology | metal film | |
| Design | SMD | |
| Power | 2 W | |
| Temperature coefficient | ±200 ppm/°K | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
