2-2176070-9 | TE Connectivity

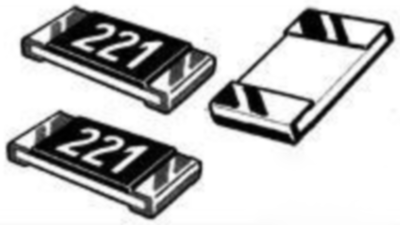

Resistor, thick film, SMD 2512 (6330), 150 Ω, 2 W, ±1 %, 2-2176070-9
Order No.: 39P6077
EAN: 4099879218490
MPN:
2-2176070-9
3521150RFT
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 15 Weeks
SMD Power Resistor, 2-2176070-9, TE Connectivity
The 2-2176070-9 is a low cost device, suitable for auto placement in volume, and for most applications, including high frequency operations, owing to the short lead structure.
Features
- Small size to power ratio
- Supplied on tape
- Value marked on resistor
- Terminal finish matte Sn over Ni
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| Technology | thick film | |
| Width | 3 mm | |
| Height | 0.55 mm | |
| Power | 2 W | |
| Length | 6.35 mm | |
| Design | SMD 2512 (6330) | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 150 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
