1622877-1 | TE Connectivity
Resistor, thick film, SMD 0603 (1608), 1 MΩ, 0.1 W, ±1 %, 1622877-1
Unit Price (€ / pc.)
0.0024 € *
Available in 5 Days: 350,000 pcs. - if ordered today

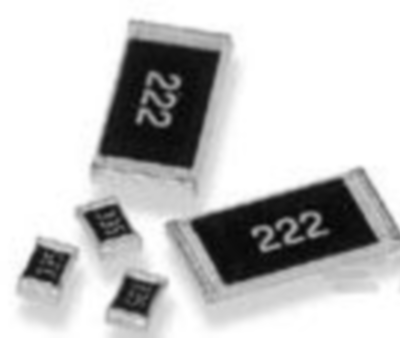

Thick Film Chip Resistor, 1622877-1, TE Connectivity
The 1622877-1 is a thick film resistor with high power to size ratio, ideally suited to industrial and general purpose use.
Features
- Terminal finish matte Sn over Ni
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| Height | 0.55 mm | |
| Tolerance | ±1 % | |
| Width | 0.8 mm | |
| ohmic resistance | 1 MΩ | |
| Power | 0.1 W | |
| Length | 1.6 mm | |
| Temperature coefficient | ±100 ppm/K | |
| Design | SMD 0603 (1608) | |
| Technology | thick film |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
