1-2176347-8 | TE Connectivity
Resistor, thick film, SMD 5025, 270 Ω, 0.75 W, ±1 %, 1-2176347-8
Unit Price (€ / pc.)
0.0833 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
333.20 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.0833 €
8000 pcs.
0.0690 €
*incl. VAT plus shipping costs
Subject to prior sale

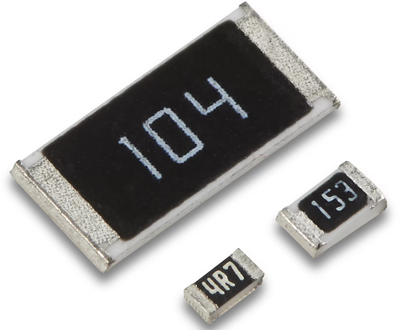

Chip resistor, 1-2176347-8, TE Connectivity
The 1-2176347-8 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.
Features
- Small size and light weight
- Terminal finish matte Sn over Ni
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/°K | |
| Technology | thick film | |
| Height | 0.55 mm | |
| Power | 0.75 W | |
| Length | 5 mm | |
| Design | SMD 5025 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 270 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
