1-2176339-7 | TE Connectivity
Resistor, thick film, SMD 1608, 220 Ω, 0.1 W, ±1 %, 1-2176339-7
Unit Price (€ / pc.)
0.0039 € *
Available: 0 pcs.
Available in 5 Days: 240,000 pcs.
Leadtime: 15 Weeks **
Total Price:
196.35 € *
Price list
Quantity
Price per unit*
50000 pcs.
0.0039 €
200000 pcs.
0.0038 €
*incl. VAT plus shipping costs
**Subject to prior sale

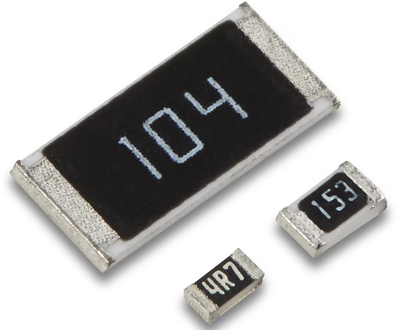

Chip resistor, 1-2176339-7, TE Connectivity
The 1-2176339-7 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.
Features
- Small size and light weight
- Terminal finish matte Sn over Ni
Technical specifications
| Temperature coefficient | ±100 ppm/°K | |
| Technology | thick film | |
| Height | 0.45 mm | |
| Power | 0.1 W | |
| Length | 1.6 mm | |
| Design | SMD 1608 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 220 Ω |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
