1-2176323-6 | TE Connectivity

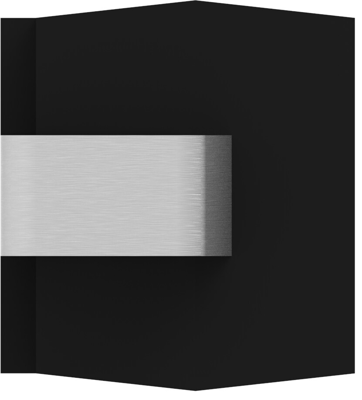

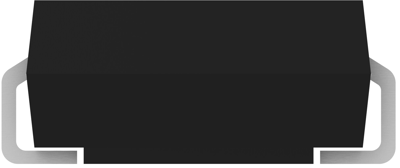

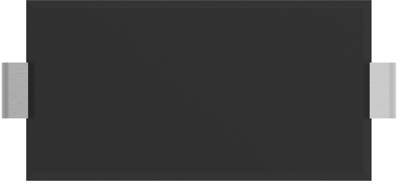

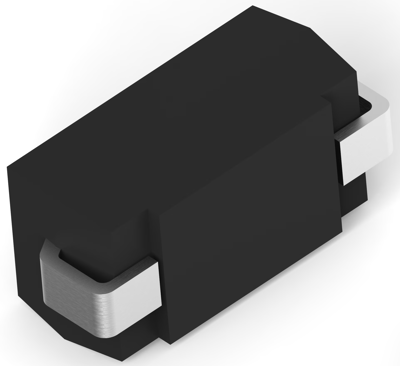

Resistor, metal film, SMD, 1.8 MΩ, 2 W, ±5 %, 1-2176323-6
Unit Price (€ / pc.)
0.2535 € *
Available in 5 Days: 10,940 pcs. - if ordered today
Power resistor, 1-2176323-6, TE Connectivity
The 1-2176322-0 is a metal glaze high voltage power resistor that provides high stable performance against environmental conditions and overload. This product is resistance to sulfur along with high surge and pulse withstand capabilities.
Features
- High surge withstanding and pulse withstanding performance
- Excellent mechanical strength and electrical stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±5 % | |
| Technology | metal film | |
| Height | 5 mm | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -65 °C | |
| Design | SMD | |
| Temperature coefficient | ±200 ppm/°K | |
| Length | 10.5 mm | |
| Power | 2 W | |
| ohmic resistance | 1.8 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
