3-1825059-1 | TE Connectivity

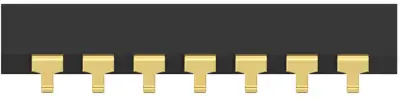

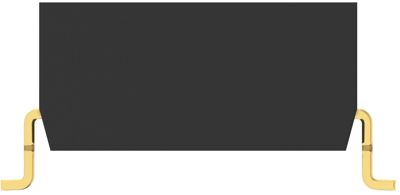

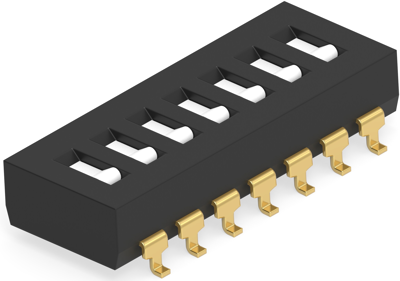

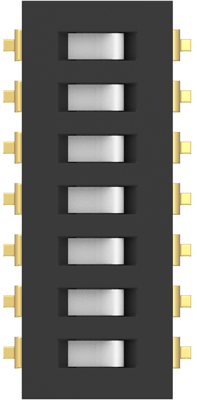

DIP switche, Off-On, 7 pole, straight, 1 A/5 VDC, 3-1825059-1
Unit Price (€ / pc.)
1.2852 € *
Available in 5 Days: 8,307 pcs. - if ordered today
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
10 pcs.
1.1900 €
25 pcs.
1.1067 €
50 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
DIP Switch, 3-1825059-1, TE Connectivity
DIP Switch, Switch, Gold flash, Black housing, Polyphenylene sulfide (PPS), Auto-Insertable, 7 Switch, -30-85 °C, DIP, Alcoswitch ADF.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Shift position | Off-On | |
| Breaking capacity | 1 A/5 VDC | |
| Grid | 2.54 mm | |
| Design | straight | |
| Connection | gull-wing | |
| Pin number | 7 pole | |
| Version | DIP switche | |
| Actuation | on top |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
