2-1825011-4 | TE Connectivity

Slide switch, On-On, 4 pole, angled, 0.4 A/20 VDC, 2-1825011-4

Order No.: 71P5370
EAN: 4099891653651
MPN:
2-1825011-4
Series: ASE/F

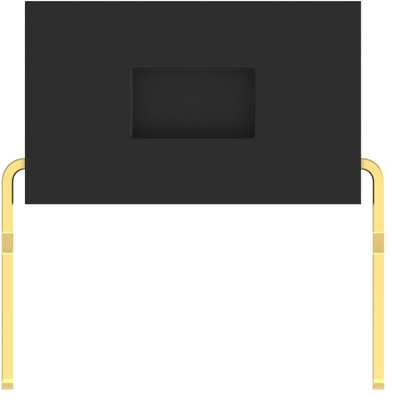

2-1825011-4 TE Connectivity Slide Switches and Coding Switches Image 1

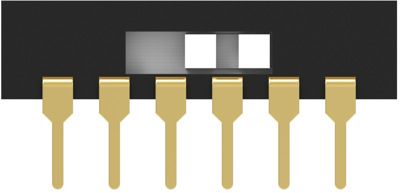

2-1825011-4 TE Connectivity Slide Switches and Coding Switches Image 2

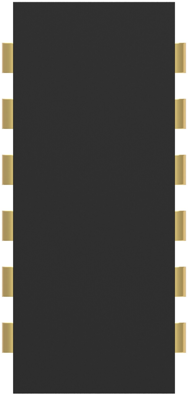

2-1825011-4 TE Connectivity Slide Switches and Coding Switches Image 3

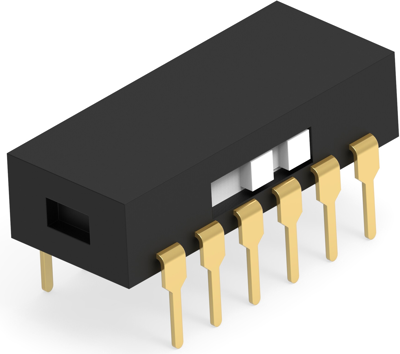

2-1825011-4 TE Connectivity Slide Switches and Coding Switches Image 4
Image may differ
Unit Price (€ / pc.)
18.2189 € *
Available in 5 Days: 1,544 pcs. - if ordered today
Total Price:
18.22 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2189 €
10 pcs.
16.9099 €
25 pcs.
15.7913 €
50 pcs.
14.3514 €
*incl. VAT plus shipping costs
Subject to prior sale

Slide switch, 2-1825011-4, TE Connectivity

Slide switch, Four Pole - Double throw configuration (Pole-Throw), Right angle, Copper alloy, Single actuator, 4 Position, On On.

Features

  • For auto insertion on standard IC equipment
Technical specifications
Filter Property Value
Breaking capacity 0.4 A/20 VDC
Version slide switch
contact surface gold-plated
Pin number 4 pole
Grid 2.54 mm
Shift position On-On
Design angled
Actuation lateral
Connection PCB pin
Logistics
Property Value
Country of origin MX
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
