1825032-1 | TE Connectivity

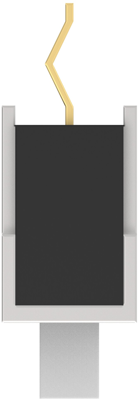

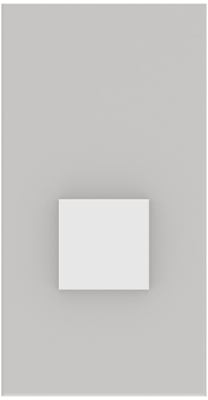

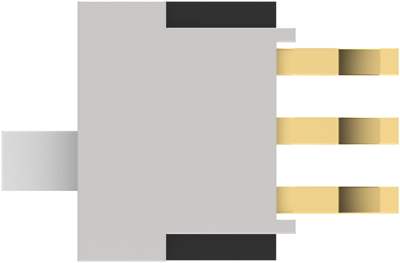

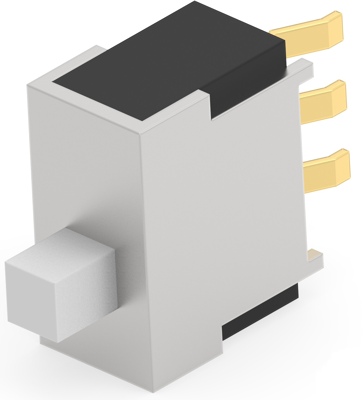

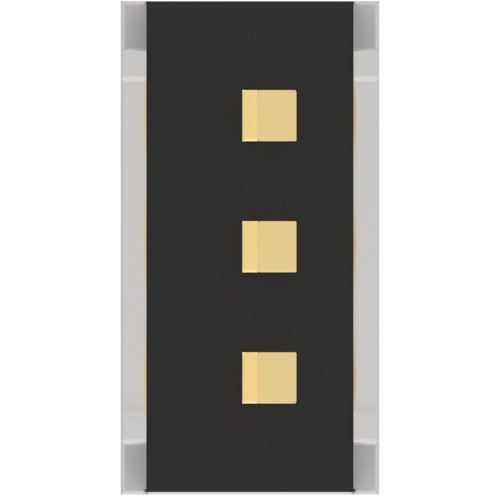

Slide switch, On-On, 1 pole, straight, 0.4 A/20 VDC, 1825032-1
Order No.: 19G1182
EAN: 4099889204476
MPN:
1825032-1
SE1DGPC04
Unit Price (€ / pc.)
4.7838 € *
Available: 16 pcs.
Leadtime: 39 Weeks **
Slide Switch, 1825032-1, TE Connectivity
Terminal Configuration: Standard, Actuator Style: Top, Terminals Connected: 1-2, 2-3, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Number of Slide Switch Positions: 2, Operating Function: On None On, Slide Switch Voltage Rating: 20 VDC, Actuator Travel: 2.2 mm, Actuator Material: PBT Basin, Actuator Color: Yellow, Contact Base Material: Phosphor Bronze, Slide Switch Contact Current Rating: .4 A, Switch Contact Plating Material: Gold, Termination Type: PC, PCB Mount Retention Type: Extended, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Actuator Length: 2.8 mm, Stamped Marking: With, UL Flammability Rating: UL 94V-0
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 0.4 A/20 VDC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
