1825011-4 | TE Connectivity
Slide switch, On-On, 2 pole, angled, 0.4 A/20 VDC, 1825011-4
Unit Price (€ / pc.)
8.1872 € *
Available in 5 Days: 351 pcs. - if ordered today
Total Price:
204.68 € *
Price list
Quantity
Price per unit*
25 pcs.
8.1872 €
60 pcs.
8.0563 €
*incl. VAT plus shipping costs
Subject to prior sale

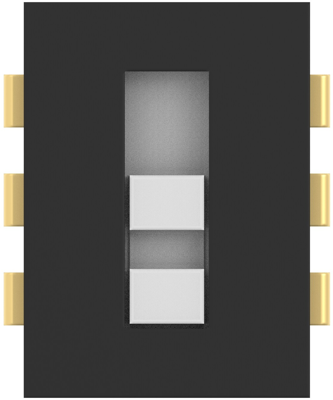

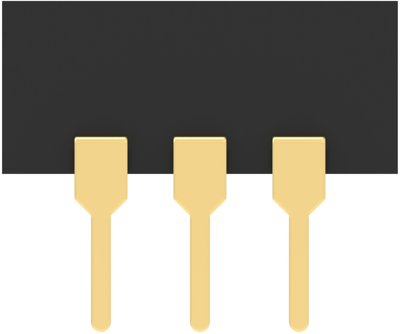

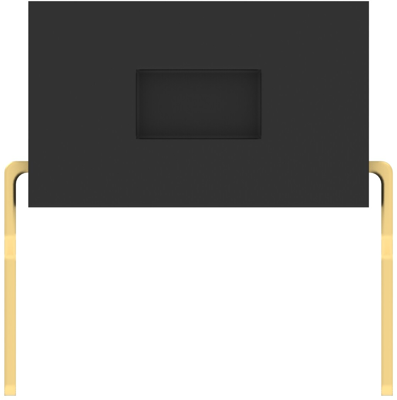

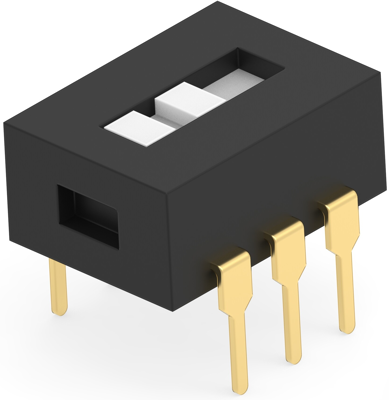

Slide switch, 1825011-4, TE Connectivity
Slide switch, Double Pole - Double throw configuration (Pole-Throw), Right angle, Copper alloy, Single actuator, 2 Position, On On.
Features
- For auto insertion on standard IC equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Shift position | On-On | |
| Breaking capacity | 0.4 A/20 VDC | |
| Grid | 2.54 mm | |
| Design | angled | |
| Connection | PCB pin | |
| Pin number | 2 pole | |
| Version | slide switch | |
| Actuation | lateral |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
