1825008-3 | TE Connectivity

Encoding rotary switch, 16 pole, hexadecimal, angled, 0.4 VA/20 V AC/DC, 1825008-3

Order No.: 19G1153
EAN: 4099889204445
MPN:
1825008-3
DRD16CRAE04
Series: DR

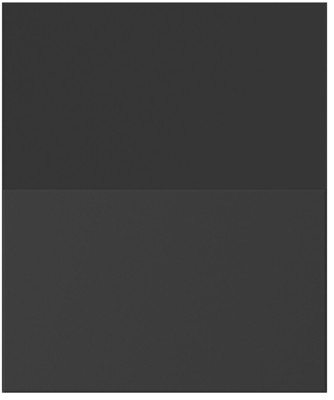

1825008-3 TE Connectivity Slide Switches and Coding Switches Image 1

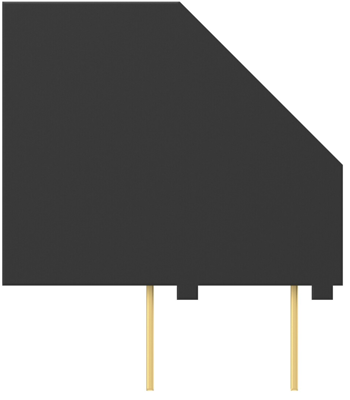

1825008-3 TE Connectivity Slide Switches and Coding Switches Image 2

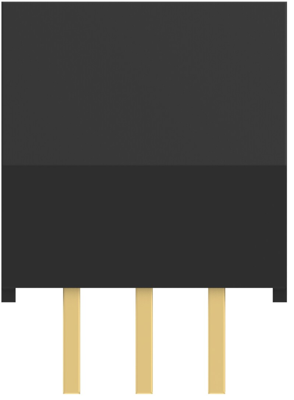

1825008-3 TE Connectivity Slide Switches and Coding Switches Image 3

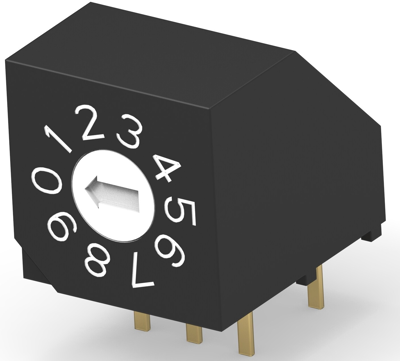

1825008-3 TE Connectivity Slide Switches and Coding Switches Image 4

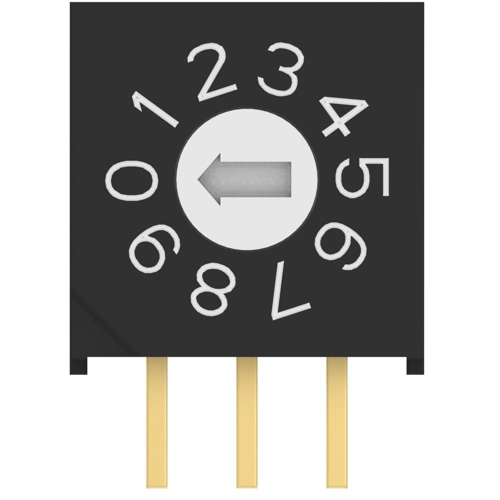

1825008-3 TE Connectivity Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
5.6525 € *
Available in 5 Days: 28,427 pcs. - if ordered today
Total Price:
5.65 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6525 €
45 pcs.
5.2003 €
180 pcs.
4.7362 €
270 pcs.
4.2602 €
*incl. VAT plus shipping costs
Subject to prior sale

Rotary Switch, 1825008-3, TE Connectivity

Illuminated: No, Actuator Style: Flush, Switch Style: Rotary, Rotary Switch Type: Rotary DIP, Sealed Rotary Switch: No, Number of Rotary Switch Positions: 16, Number of Switches: 16, Rotary Switch Voltage Rating: 20 VDC, Rotary Switch Voltage Rating: 20 VAC, Solder Tail Contact Plating: Gold Flash over Nickel, Rotary Switch Contact Current Rating: .4 A, Rotary Switch Contact Mating Area Plating Material: Gold Flash, Contact Base Material: Copper Alloy, Termination Style: Printed Circuit Board, Rotary Switch Mounting Type: Through Hole, Rotary Switch Mounting Angle: Right Angle, Centerline: 2.54 mm, Rotary Switch Housing Material: Thermoplastic, Oil-Tight: No, UL Flammability Rating: UL 94V-0, Packaging Method: Tube

Technical specifications
contact surface gold-plated
Coding hexadecimal
Breaking capacity 0.4 VA/20 V AC/DC
Grid 2.54 mm
Pin number 16 pole
Version encoding rotary switch
Design angled
Actuation lateral
Connection PCB pin
Logistics
Country of origin TH
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
