2271698-1 | TE Connectivity
Terminal block, 2271698-1
Order No.: 71P6219
EAN: 4099891650964
MPN:
2271698-1
Unit Price (€ / pc.)
5.3193 € *
Available in 5 Days: 1,200 pcs. - if ordered today
Total Price:
212.77 € *
Price list
Quantity
Price per unit*
40 pcs.
5.3193 €
95 pcs.
5.0813 €
*incl. VAT plus shipping costs
Subject to prior sale

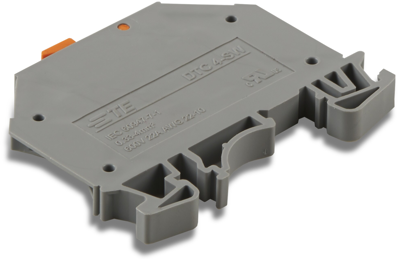

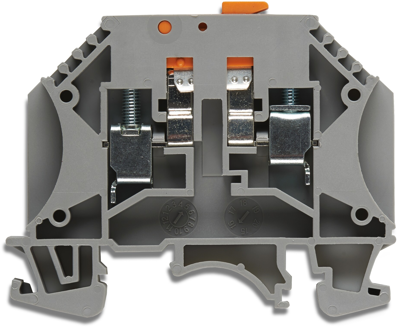

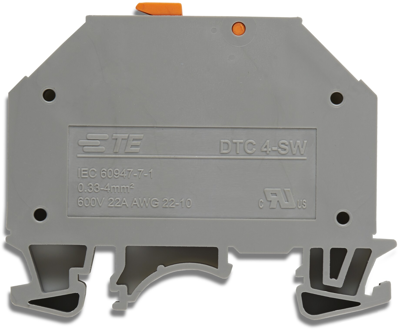

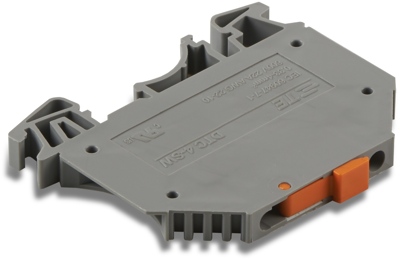

Terminal block, 2271698-1, TE Connectivity
Screw terminal block, Standard, 1 position, Brass, Quick connect, DIN Rail, Steel.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 600 V | |
| Connection | quick connection | |
| AWG cross-section | AWG 22 to 10 | |
| Length | 60 mm | |
| Height | 46.5 mm | |
| Rated surge voltage | 8 kV | |
| Width | 6.1 mm | |
| Pin number | 1 pole | |
| Colour | gray | |
| Version | screw terminal block | |
| Cable cross-section | 0.33-4.0 mm² | |
| Rated current | 22 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
