2271686-1 | TE Connectivity
Terminal block, 2271686-1
Order No.: 71P6190
EAN: 4099891650674
MPN:
2271686-1
Unit Price (€ / pc.)
13.5422 € *
Available in 5 Days: 398 pcs. - if ordered today
Total Price:
203.13 € *
Price list
Quantity
Price per unit*
15 pcs.
13.5422 €
40 pcs.
13.0067 €
*incl. VAT plus shipping costs
Subject to prior sale

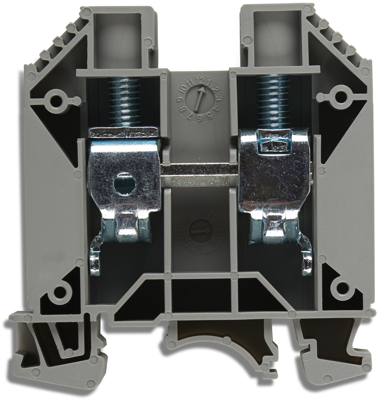

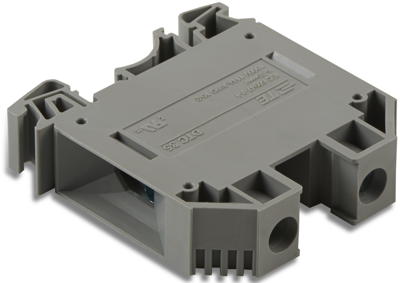

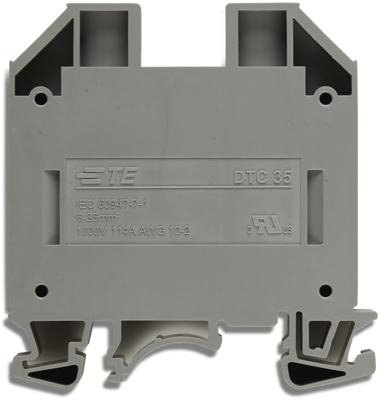

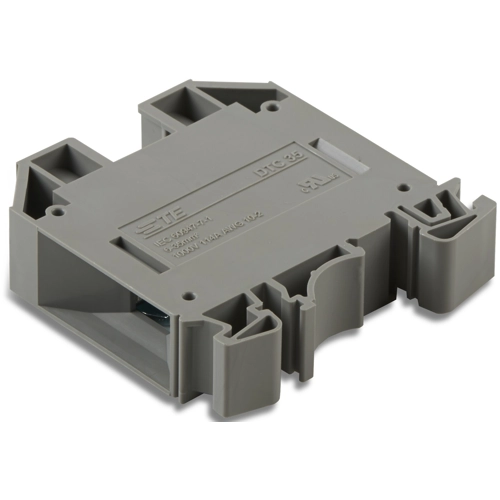

Terminal block, 2271686-1, TE Connectivity
Screw terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Steel.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 60 mm | |
| Rated current | 114 A | |
| Height | 62.5 mm | |
| Colour | gray | |
| Rated surge voltage | 8 kV | |
| Width | 16 mm | |
| Connection | quick connection | |
| Pin number | 1 pole | |
| Version | screw terminal block | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 6.0-35 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
