2271681-5 | TE Connectivity

Terminal block, 2271681-5

Order No.: 71P6171
EAN: 4099891650483
MPN:
2271681-5

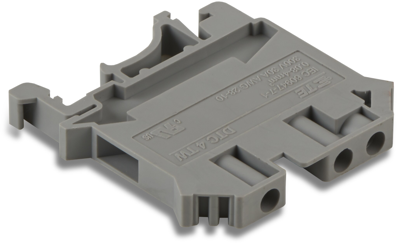

2271681-5 TE Connectivity Series Terminals Image 1

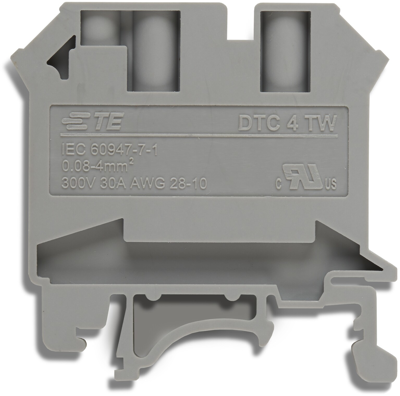

2271681-5 TE Connectivity Series Terminals Image 2

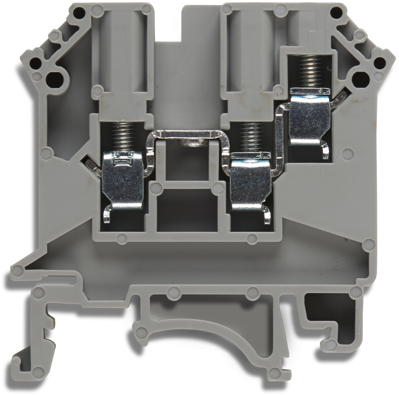

2271681-5 TE Connectivity Series Terminals Image 3

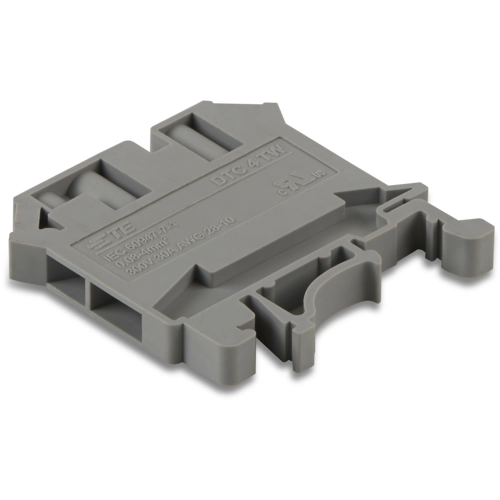

2271681-5 TE Connectivity Series Terminals Image 4
Image may differ
Unit Price (€ / pc.)
6.8663 € *
Available in 5 Days: 300 pcs. - if ordered today
Total Price:
205.99 € *
Price list
Quantity
Price per unit*
30 pcs.
6.8663 €
70 pcs.
6.5807 €
*incl. VAT plus shipping costs
Subject to prior sale

Terminal block, 2271681-5, TE Connectivity

Screw terminal block, Standard, 1 position, Brass, Quick connect, DIN Rail, Steel.

Technical specifications
Filter Property Value
Connection quick connection
Width 6.1 mm
Colour black
Rated surge voltage 6 kV
Pin number 1 pole
AWG cross-section AWG 28 to 10
Length 46.8 mm
Rated Voltage 300 V
Version screw terminal block
Height 45.8 mm
Rated current 30 A
Cable cross-section 0.08-4.0 mm²
Logistics
Property Value
Country of origin TW
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
