2271579-1 | TE Connectivity

Name: Terminal block, quick connection, 0.08-4.0 mm², 1 pole, 30 A, 8 kV, gray, 2271579-1
Brand: TE Connectivity
SKU: 71P6131
Availability: InStock

Terminal block, quick connection, 0.08-4.0 mm², 1 pole, 30 A, 8 kV, gray, 2271579-1

Order No.: 71P6131

EAN: 4099891650100

MPN:

2271579-1

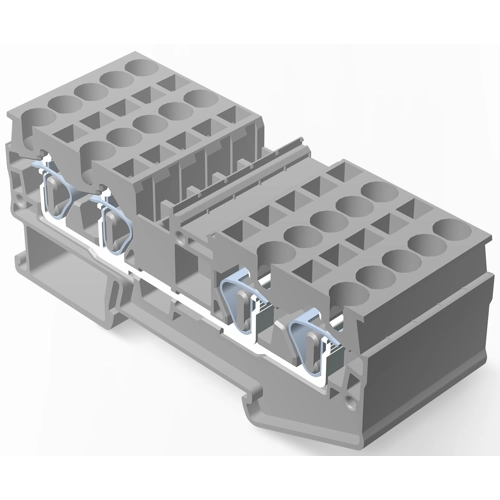

Image may differ

Key Specification:

Version spring terminal block

Pin number 1 pole

Cable cross-section 0.08-4.0 mm²

AWG cross-section AWG 28 to 10

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.6898 € *

Available in 5 Days: 1,988 pcs. - if ordered today

Total Price:

253.47 € *

Price list

Quantity

Price per unit*

150 pcs.

1.6898 €

400 pcs.

1.6303 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Terminal block, 2271579-1, TE Connectivity

Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Matte tin.

Technical specifications

Filter	Property	Value
	Connection	quick connection
	Width	6.15 mm
	Colour	gray
	Rated surge voltage	8 kV
	Pin number	1 pole
	AWG cross-section	AWG 28 to 10
	Length	87.3 mm
	Rated Voltage	600 V
	Version	spring terminal block
	Height	35.4 mm
	Rated current	30 A
	Cable cross-section	0.08-4.0 mm²
