2271578-1 | TE Connectivity

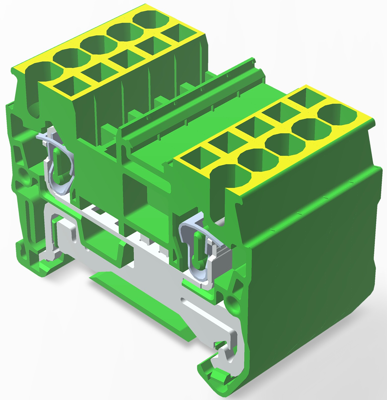

Name: Terminal block, quick connection, 0.08-2.5 mm², 1 pole, green, 2271578-1
Brand: TE Connectivity
SKU: 71P6130
Availability: OutOfStock

Terminal block, quick connection, 0.08-2.5 mm², 1 pole, green, 2271578-1

Order No.: 71P6130

EAN: 4099891650094

MPN:

2271578-1

Image may differ

Key Specification:

Version spring terminal block

Pin number 1 pole

Cable cross-section 0.08-2.5 mm²

AWG cross-section AWG 28 to 12

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

8.0563 € *

Available in 5 Days: 3,211 pcs. - if ordered today

Total Price:

201.41 € *

Price list

Quantity

Price per unit*

25 pcs.

8.0563 €

60 pcs.

7.7588 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Terminal block, 2271578-1, TE Connectivity

Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Matte tin.

Technical specifications

Filter	Property	Value
	Colour	green
	AWG cross-section	AWG 28 to 12
	Width	5.15 mm
	Height	35.4 mm
	Length	48.8 mm
	Cable cross-section	0.08-2.5 mm²
	Pin number	1 pole
	Version	spring terminal block
	Connection	quick connection
	Rated Voltage	600 V
