2271559-1 | TE Connectivity

Name: Terminal block, quick connection, 0.08-4.0 mm², 1 pole, 30 A, 8 kV, gray, 2271559-1
Brand: TE Connectivity
SKU: 71P6117
Availability: InStock

Terminal block, quick connection, 0.08-4.0 mm², 1 pole, 30 A, 8 kV, gray, 2271559-1

Order No.: 71P6117

EAN: 4099891649968

MPN:

2271559-1

Image may differ

Key Specification:

Version spring terminal block

Pin number 1 pole

Cable cross-section 0.08-4.0 mm²

AWG cross-section AWG 28 to 10

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.2015 € *

Available in 5 Days: 7,071 pcs. - if ordered today

Total Price:

209.14 € *

Price list

Quantity

Price per unit*

95 pcs.

2.2015 €

250 pcs.

2.1182 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Terminal block, 2271559-1, TE Connectivity

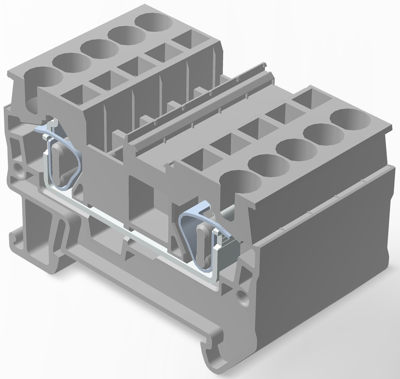

Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Matte tin.

Technical specifications

Filter	Property	Value
	Rated Voltage	600 V
	Connection	quick connection
	AWG cross-section	AWG 28 to 10
	Length	56.1 mm
	Height	35.4 mm
	Rated surge voltage	8 kV
	Width	6.15 mm
	Pin number	1 pole
	Colour	gray
	Version	spring terminal block
	Cable cross-section	0.08-4.0 mm²
	Rated current	30 A
