1SNK805025R0000 | TE Connectivity
Modular terminal block, push-in connection, 2.5 mm², 2 pole, 8 kV, blue, 1SNK805025R0000
Unit Price (€ / pc.)
2.3324 € *
Available in 5 Days: 3,650 pcs. - if ordered today
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
10 pcs.
2.1658 €
25 pcs.
2.0230 €
50 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale

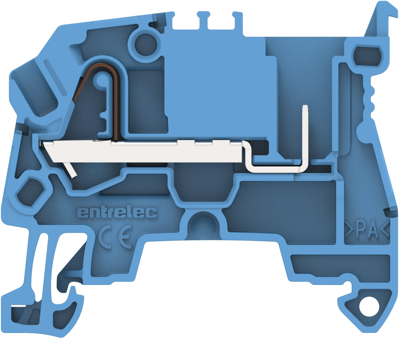

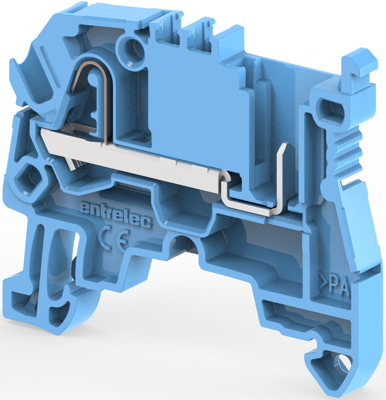

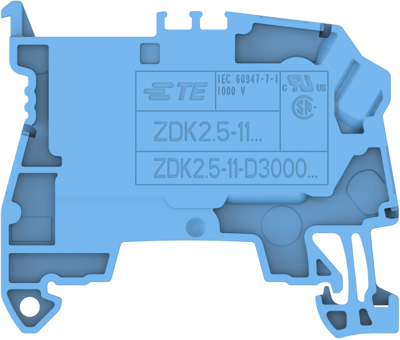

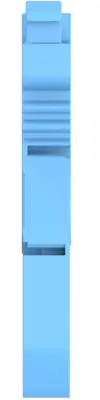

PCB Terminal, 1SNK805025R0000, TE Connectivity
The 1SNK805025R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | modular terminal block | |
| Pin number | 2 pole | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 2.5 mm² | |
| Rated surge voltage | 8 kV | |
| Height | 49.6 mm | |
| Width | 5.2 mm | |
| Length | 43 mm | |
| Connection | push-in connection | |
| Colour | blue | |
| AWG cross-section | AWG 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
