1SNK706022R0000 | TE Connectivity

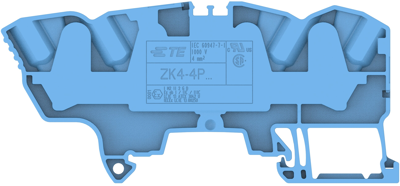

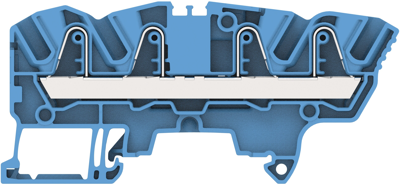

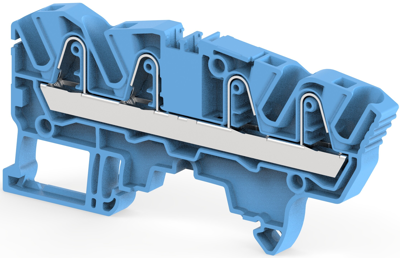

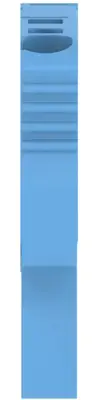

PI spring terminal block, push-in spring connection, 4.0 mm², 4 pole, 32 A, 8 kV, blue, 1SNK706022R0000
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9274 €
10 pcs.
2.7251 €
25 pcs.
2.5347 €
50 pcs.
2.3086 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1SNK706022R0000, TE Connectivity
The 1SNK706022R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 89.7 mm | |
| Pin number | 4 pole | |
| Version | PI spring terminal block | |
| Colour | blue | |
| Width | 6 mm | |
| Rated current | 32 A | |
| Degree of soiling | 3 | |
| Rated Voltage | 1000 V | |
| AWG cross-section | AWG 10 | |
| Connection | push-in spring connection | |
| Rated surge voltage | 8 kV | |
| Cable cross-section | 4.0 mm² | |
| Length | 41.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
