1SNK508410R0000 | TE Connectivity

Screw terminal block, screw connection, 4.0 mm², 2 pole, 6.3 A, 8 kV, dark gray/gray, 1SNK508410R0000

Order No.: 71P4343
EAN: 4099891649364
MPN:
1SNK508410R0000
Series: SNK

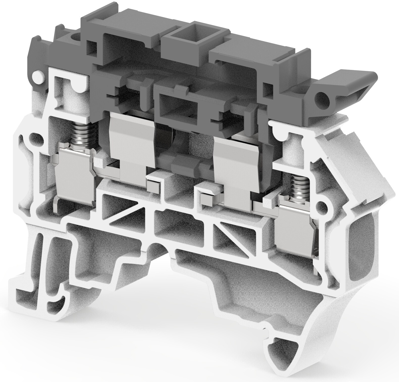

1SNK508410R0000 TE Connectivity Series Terminals Image 1

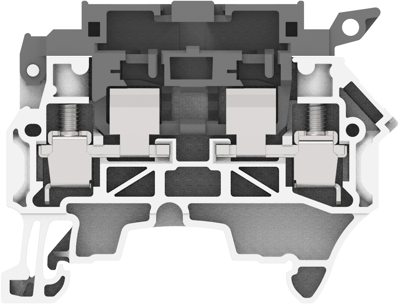

1SNK508410R0000 TE Connectivity Series Terminals Image 2

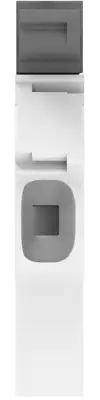

1SNK508410R0000 TE Connectivity Series Terminals Image 3

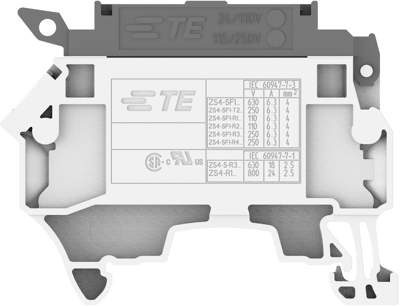

1SNK508410R0000 TE Connectivity Series Terminals Image 4
1SNK508410R0000 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
7.0567 € *
Available in 5 Days: 2,540 pcs. - if ordered today
Total Price:
7.06 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0567 €
5 pcs.
6.6878 €
10 pcs.
6.2594 €
25 pcs.
5.7001 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 1SNK508410R0000, TE Connectivity

The 1SNK508410R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.

Features

  • Easy to install
  • Optimized logistics
Technical specifications
Filter Property Value
Connection screw connection
Width 8 mm
Colour dark gray/gray
Rated surge voltage 8 kV
Pin number 2 pole
AWG cross-section AWG 10
Length 45.6 mm
Degree of soiling 3
Rated Voltage 630 V
Version screw terminal block
Height 59.7 mm
Rated current 6.3 A
Cable cross-section 4.0 mm²
Logistics
Property Value
Country of origin FR
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
