1SNK508316R0000 | TE Connectivity

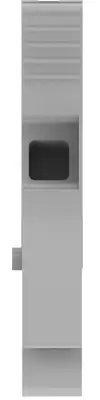

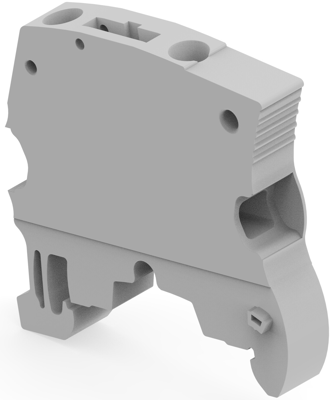

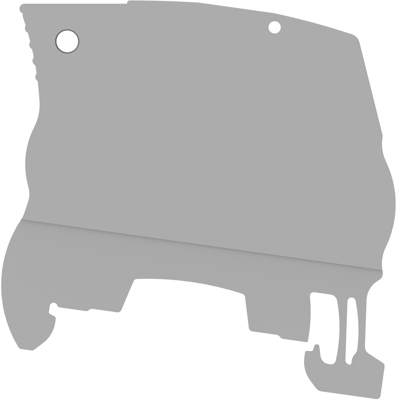

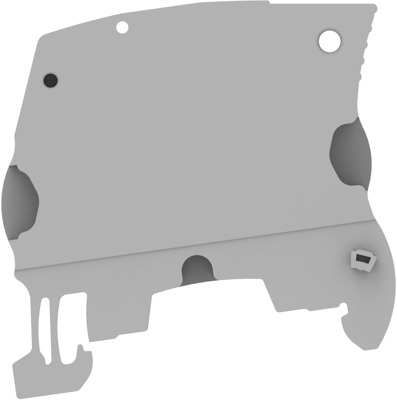

Screw terminal block, screw connection, 2.5 mm², 2 pole, 18 A, 6 kV, gray, 1SNK508316R0000
Unit Price (€ / pc.)
8.7584 € *
Available in 5 Days: 1,470 pcs. - if ordered today
Total Price:
8.76 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7584 €
5 pcs.
8.3062 €
10 pcs.
7.7707 €
25 pcs.
7.0924 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1SNK508316R0000, TE Connectivity
The 1SNK508316R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 8 mm | |
| Colour | gray | |
| Rated surge voltage | 6 kV | |
| Pin number | 2 pole | |
| AWG cross-section | AWG 6 | |
| Length | 47.3 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 630 V | |
| Version | screw terminal block | |
| Height | 53 mm | |
| Rated current | 18 A | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
