1SNK506413R0000 | TE Connectivity
Screw terminal block, screw connection, 4.0 mm², 2 pole, 6.3 A, 6 kV, dark gray/gray, 1SNK506413R0000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
49.8610 € *
Available in 12 Days: 214 pcs. - if ordered today
Total Price:
49.86 € *
Price list
Quantity
Price per unit*
1 pcs.
49.8610 €
2 pcs.
46.6361 €
5 pcs.
43.8158 €
10 pcs.
40.7337 €
*incl. VAT plus shipping costs
Subject to prior sale

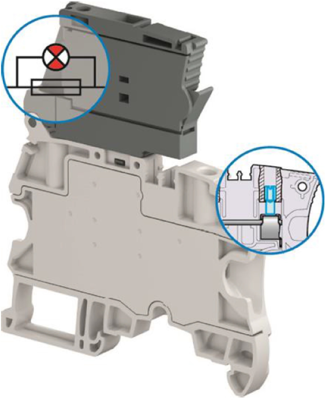

PCB Terminal, 1SNK506413R0000, TE Connectivity
The 1SNK506413R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | screw terminal block | |
| Pin number | 2 pole | |
| Cable cross-section | 4.0 mm² | |
| AWG cross-section | AWG 10 | |
| Rated surge voltage | 6 kV | |
| Rated current | 6.3 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 76.8 mm | |
| Width | 6 mm | |
| Height | 70.5 mm | |
| Connection | screw connection | |
| Colour | dark gray/gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
