1SNK506211R0000 | TE Connectivity

Screw terminal block, screw connection, 6.0 mm², 4 pole, 40 A, 8 kV, gray, 1SNK506211R0000

Order No.: 71P4327
MPN:
1SNK506211R0000
Series: SNK

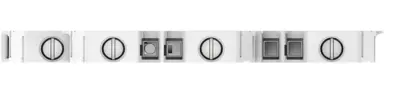

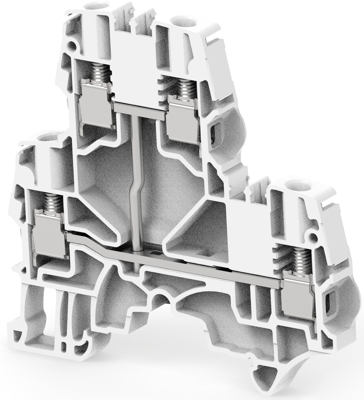

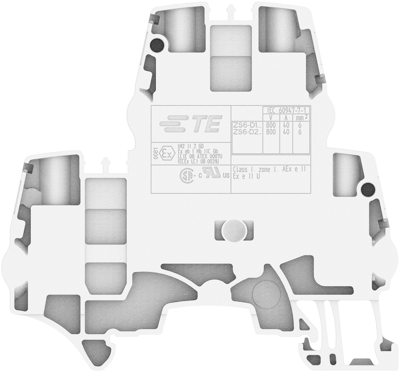

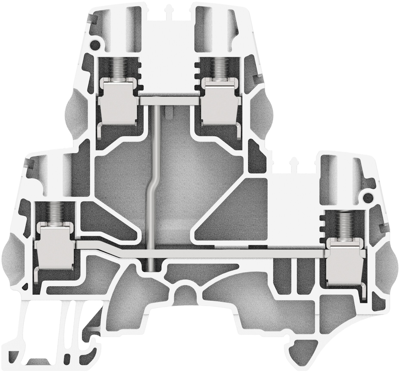

1SNK506211R0000 TE Connectivity Series Terminals Image 1
1SNK506211R0000 TE Connectivity Series Terminals Image 2
1SNK506211R0000 TE Connectivity Series Terminals Image 3
1SNK506211R0000 TE Connectivity Series Terminals Image 4
1SNK506211R0000 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
19.0638 € *
Available in 5 Days: 493 pcs. - if ordered today
Total Price:
19.06 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0638 €
5 pcs.
18.0761 €
10 pcs.
16.9099 €
25 pcs.
15.4224 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 1SNK506211R0000, TE Connectivity

The 1SNK506211R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.

Features

  • Easy to install
  • Optimized logistics
Technical specifications
Filter Property Value
Rated Voltage 800 V
Connection screw connection
Rated current 40 A
Version screw terminal block
Pin number 4 pole
Width 6 mm
Height 70.4 mm
AWG cross-section AWG 10
Degree of soiling 3
Rated surge voltage 8 kV
Colour gray
Length 65.5 mm
Cable cross-section 6.0 mm²
Logistics
Property Value
Country of origin FR
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
