1SNA199105R2200 | TE Connectivity
Screw terminal block, screw connection, 10 mm², 2 pole, 16 A, 8 kV, black/blue, 1SNA199105R2200
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
26.7750 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
26.78 € *
Price list
Quantity
Price per unit*
1 pcs.
26.7750 €
2 pcs.
25.0495 €
5 pcs.
23.5263 €
10 pcs.
21.8722 €
*incl. VAT plus shipping costs
Subject to prior sale

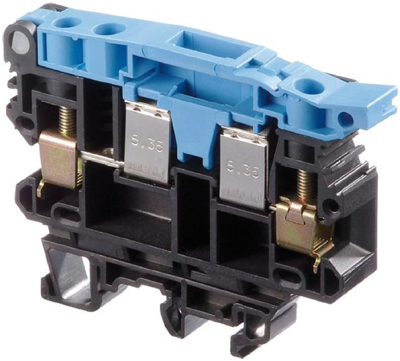

Terminal block, 1SNA199105R2200, TE Connectivity
Modular terminal block, Disconnect, Screw clamp terminal block, Black, Product spacing 13 mm, 2 Position, Screw terminal.
Features
- Protect your circuits with 6.35 x 25.4 mm and 6.35 x 32 mm fuse terminal block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | screw terminal block | |
| Pin number | 2 pole | |
| Cable cross-section | 10 mm² | |
| AWG cross-section | AWG 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 16 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 58 mm | |
| Width | 13 mm | |
| Height | 85 mm | |
| Connection | screw connection | |
| Colour | black/blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
