1SNA115986R0000 | TE Connectivity

Screw terminal block, screw connection, 4.0 mm², 2 pole, 20 A, 4 kV, gray/orange, 1SNA115986R0000

Order No.: 71P4142
EAN: 4099891648954
MPN:
1SNA115986R0000
Series: SNA

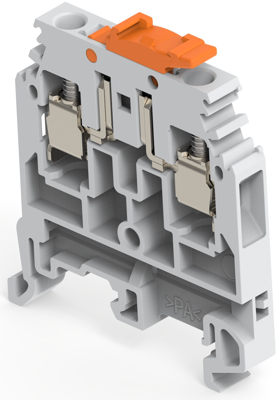

1SNA115986R0000 TE Connectivity Series Terminals Image 1

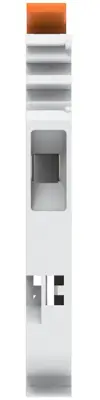

1SNA115986R0000 TE Connectivity Series Terminals Image 2

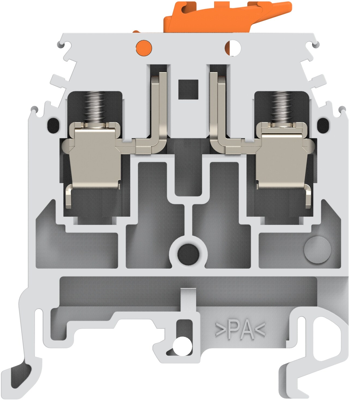

1SNA115986R0000 TE Connectivity Series Terminals Image 3

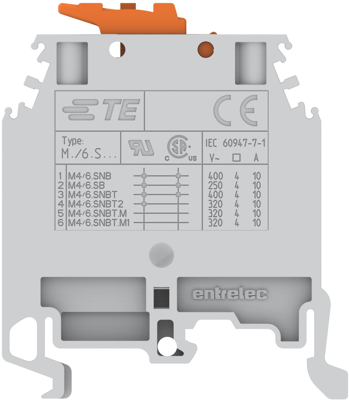

1SNA115986R0000 TE Connectivity Series Terminals Image 4
1SNA115986R0000 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
6.8663 € *
Available in 5 Days: 400 pcs. - if ordered today
Total Price:
6.87 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8663 €
10 pcs.
6.3189 €
50 pcs.
5.6882 €
100 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale

Terminal block, 1SNA115986R0000, TE Connectivity

Modular terminal block, Disconnect, Screw clamp terminal block, Gray, Product spacing 6 mm, 2 Position, Screw terminal.

Features

  • Ease your disconnect operations with the disconnect blade
Technical specifications
Colour gray/orange
AWG cross-section AWG 10
Rated current 20 A
Width 6 mm
Height 44.5 mm
Length 44.5 mm
Cable cross-section 4.0 mm²
Pin number 2 pole
Version screw terminal block
Connection screw connection
Degree of soiling 3
Rated Voltage 400 V
Rated surge voltage 4 kV
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
