1SNA115678R0200 | TE Connectivity
Screw terminal block, screw connection, 6.0 mm², 2 pole, 24 A, 6 kV, gray/yellow, 1SNA115678R0200
Unit Price (€ / pc.)
18.0047 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
16.7195 €
25 pcs.
15.6128 €
50 pcs.
14.1848 €
*incl. VAT plus shipping costs
Subject to prior sale

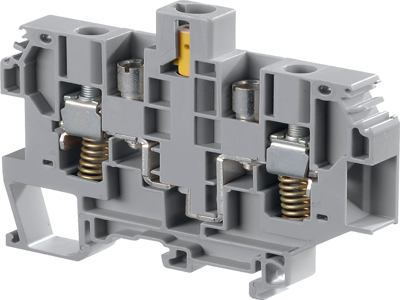

PCB Terminal, 1SNA115678R0200, TE Connectivity
The 1SNA115678R0200 is a spring loaded screw clamp terminal block, mainly dedicated to energy markets for security purposes on CT circuits. The specific shape in linking bar to lock the ferrule, spring clamp can maintain contact pressure even if screw clamp is loose.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Pin number | 2 pole | |
| Height | 72.5 mm | |
| Colour | gray/yellow | |
| Degree of soiling | 3 | |
| Rated current | 24 A | |
| Cable cross-section | 6.0 mm² | |
| Version | screw terminal block | |
| Connection | screw connection | |
| AWG cross-section | AWG 8 | |
| Width | 8 mm | |
| Rated surge voltage | 6 kV | |
| Length | 68.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
