1SNA115505R1600 | TE Connectivity
Screw terminal block, screw connection, 2.5 mm², 2 pole, 10 A, 4 kV, gray, 1SNA115505R1600
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.8778 € *
Available in 12 Days: 170 pcs. - if ordered today
Total Price:
7.88 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8778 €
5 pcs.
7.4732 €
10 pcs.
6.9853 €
25 pcs.
6.3665 €
*incl. VAT plus shipping costs
Subject to prior sale

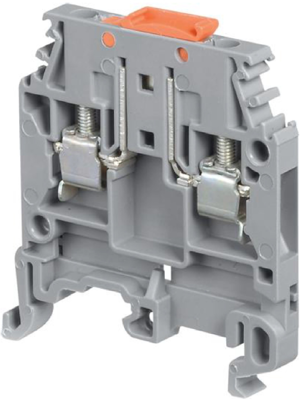

Terminal block, 1SNA115505R1600, TE Connectivity
Modular terminal block, Disconnect, Screw clamp terminal block, Gray, Product spacing 5 mm, 2 Position, Screw terminal.
Features
- Ease your test operations with the two built-in test socket
- Ease your disconnect operations with the disconnect blade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | screw terminal block | |
| Pin number | 2 pole | |
| Cable cross-section | 2.5 mm² | |
| Rated surge voltage | 4 kV | |
| Rated current | 10 A | |
| Rated Voltage | 320 V | |
| Degree of soiling | 3 | |
| Length | 44.5 mm | |
| Width | 5 mm | |
| Height | 44.5 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
