1SNA105047R2400 | TE Connectivity
Screw terminal block, screw connection, 4.0 mm², 2 pole, 32 A, 8 kV, black, 1SNA105047R2400
Unit Price (€ / pc.)
10.1507 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
10.15 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1507 €
5 pcs.
9.6271 €
10 pcs.
8.9964 €
25 pcs.
8.2110 €
*incl. VAT plus shipping costs
Subject to prior sale

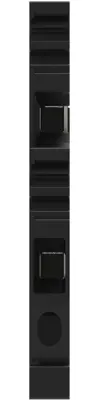

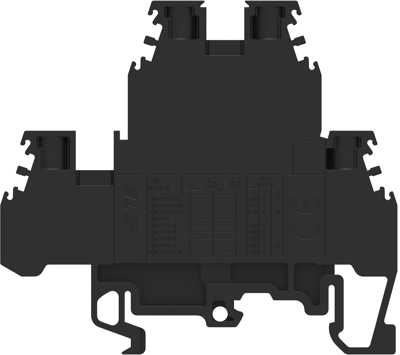

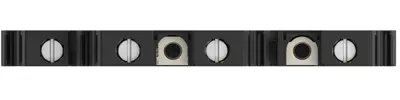

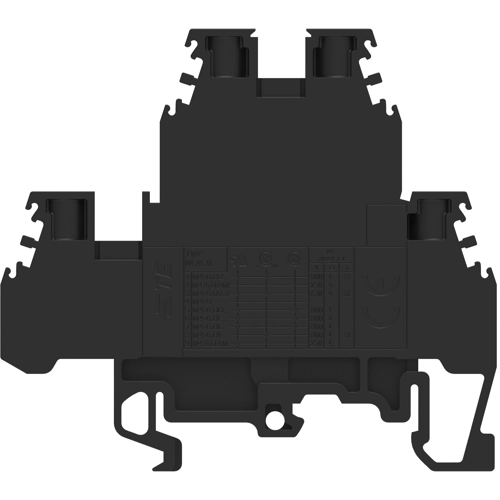

Terminal block, 1SNA105047R2400, TE Connectivity

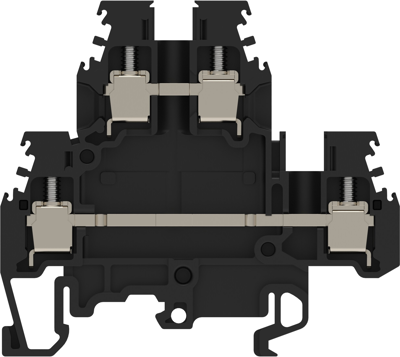

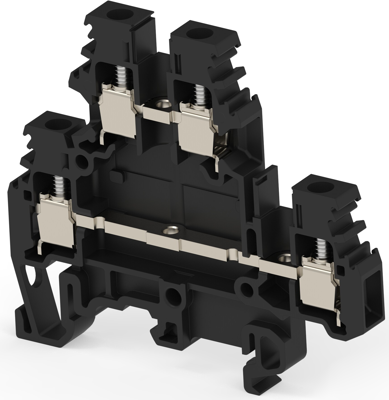

The 1SNA105047R2400 is a screw clamp terminal block save space with double deck terminal and 2 independent circuits in just 6 mm spacing.
Features
- Snap onto symmetrical and asymmetrical rails
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 800 V | |
| Connection | screw connection | |
| AWG cross-section | AWG 12 | |
| Length | 52 mm | |
| Height | 65.5 mm | |
| Rated surge voltage | 8 kV | |
| Width | 6 mm | |
| Pin number | 2 pole | |
| Colour | black | |
| Version | screw terminal block | |
| Cable cross-section | 4.0 mm² | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
