MS561101BA03-50 | TE Connectivity
Digital pressure and altimeter sensor, 0.145-17.4 psi (10-1200 mbar), 1.8-3.6 V, MS561101BA03-50, SMD-8, -40 to 85 °C, MS561101BA03-50
Order No.: 40P7821
EAN: 4099889456165
MPN:
MS561101BA03-50
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.1519 € *
Available in 12 Days: 12,420 pcs. - if ordered today

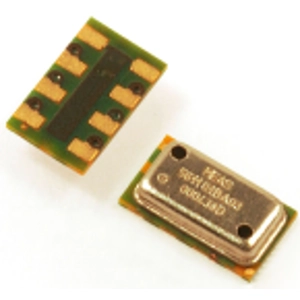

Pressure Sensor, MS561101BA03-50, TE Connectivity
Pressure sensor, with stainless steel cap
FEATURES
- High resolution module, 10 cm
- Fast conversion down to 1 ms
- Low power, 1 µA (standby < 0.15 µA)
- Excellent long term stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | digital pressure and altimeter sensor | |
| measurement range | 0.145-17.4 psi (10-1200 mbar) | |
| Voltage | 1.8-3.6 V | |
| Assembly | SMD | |
| Enclosure | SMD-8 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262020 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
