T4012008041-000 | TE Connectivity

Jack, M8, 4 pole, screw connection, screw locking, angled, T4012008041-000

Order No.: 50F910
EAN: 4099889698770
MPN:
T4012008041-000
T4012008041-000 TE Connectivity Sensor-Actuator Connectors

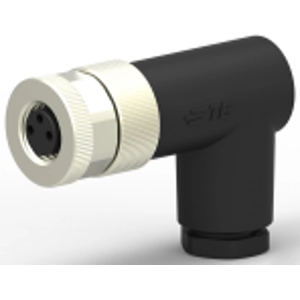

Image may differ
Unit Price (€ / pc.)
18.9686 € *
Available in 5 Days: 240 pcs. - if ordered today
Total Price:
18.97 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9686 €
10 pcs.
17.4454 €
25 pcs.
15.7080 €
50 pcs.
14.1372 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, T4012008041-000, TE Connectivity

Assembly type: Electrical connector, Connector system: Wire-to-Wire, Sealable: Yes, Connector and contact terminates To: Wire and Cable, Circular connector type: Receptacle, Keying: A, Number of positions: 4, Number of power positions: 0, Number of signal positions: 4, Contacts preloaded: Yes, Operating Voltage: 30 VAC, Environmental protection type: Elastomer sealed, Shell base material: PBT, Circular connector insulation material type: Polyamide 66 GF25, Contact current rating (Max): 3 A, Reverse gender: No, Circular connector contact type: Socket, Mating alignment: With, polarization code: A, Mating alignment type: Keyed, Circular connector shell size: 12, Wire Size: 0.25 – 0.14 mm², Wire Size: 24 – 26 AWG, IP water sealing level: IP67, Operating temperature range: -40 – 85 °C,-40 – 85 °C, Durability rating: 100 Cycles, Circuit application: Signal, Shielded: No, Field serviceable: Yes

Technical Data

  • Thread size: M8
  • Assembly: Cable assembly
  • Type of locking: Screw locking
  • Degree of protection (IP): IP67
Technical specifications
Coding A
Type of locking screw locking
Thread size M8
Degree of protection (IP) IP67
contact surface gold-plated
Orientation angled
Pin number 4 pole
Assembly cable assembly
Contact connection screw connection
Product type jack
Logistics
Customs tariff number 85366910
Country of origin CN
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
