2120959-1 | TE Connectivity

Panel socket, M8, 3 pole, solder connection, straight, 2120959-1

Order No.: 59F631
MPN:
2120959-1

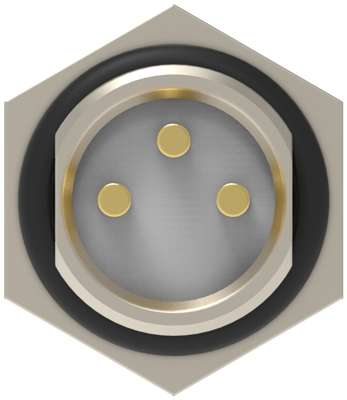

2120959-1 TE Connectivity Sensor-Actuator Connectors Image 1

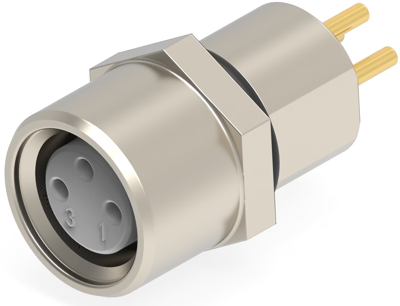

2120959-1 TE Connectivity Sensor-Actuator Connectors Image 2

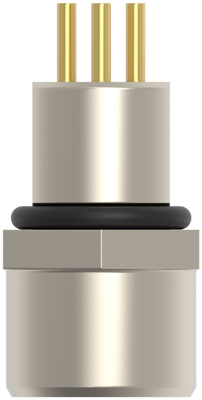

2120959-1 TE Connectivity Sensor-Actuator Connectors Image 3

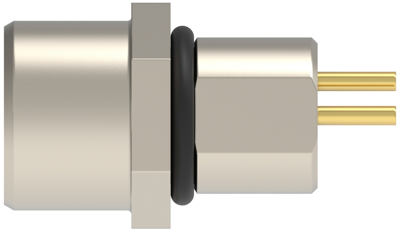

2120959-1 TE Connectivity Sensor-Actuator Connectors Image 4

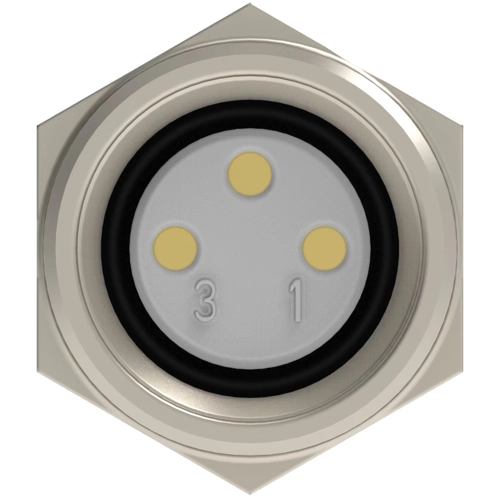

2120959-1 TE Connectivity Sensor-Actuator Connectors Image 5
Image may differ
Unit Price (€ / pc.)
23.1812 € *
Standard delivery time from the manufacturer is: 42 Weeks
Total Price:
23.18 € *
Price list
Quantity
Price per unit*
1 pcs.
23.1812 €
10 pcs.
21.5628 €
25 pcs.
19.8373 €
50 pcs.
18.0523 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular Connector, 2120959-1, TE Connectivity

Circular Connector, Cable-to-Cable, 3 Position, Sealable, Wire and Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, M8 Connector.

Technical specifications
Pin number 3 pole
Contact connection solder connection
Product type socket
Coding A
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M8
contact surface nickel-plated
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
