TAB62135501-040 | TE Connectivity

Sensor actuator cable, M12-cable plug, straight to open end, 2 pole, 4 m, PUR, purple, 4 A, TAB62135501-040

Order No.: 72P4054
EAN: 4099891673376
MPN:
TAB62135501-040

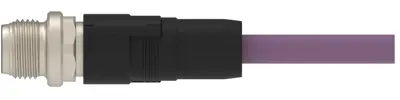

TAB62135501-040 TE Connectivity Sensor-Actuator Cables Image 1

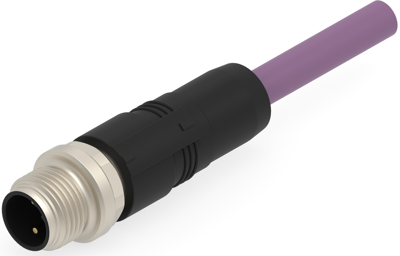

TAB62135501-040 TE Connectivity Sensor-Actuator Cables Image 2

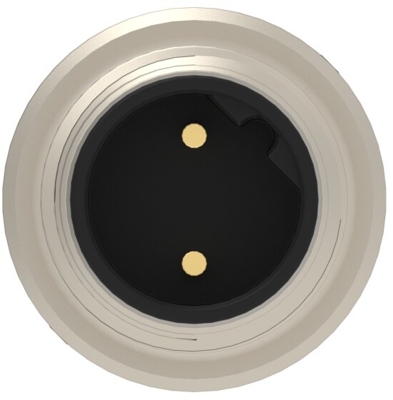

TAB62135501-040 TE Connectivity Sensor-Actuator Cables Image 3

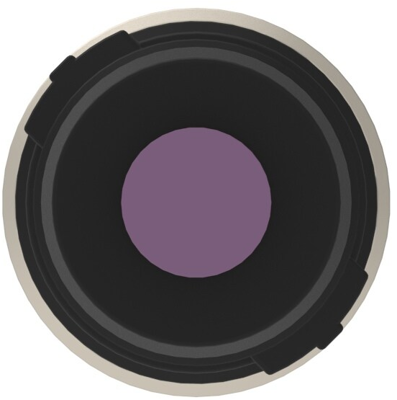

TAB62135501-040 TE Connectivity Sensor-Actuator Cables Image 4

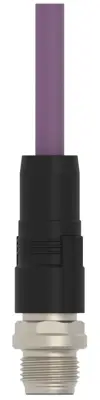

TAB62135501-040 TE Connectivity Sensor-Actuator Cables Image 5
Image may differ
Unit Price (€ / pc.)
39.4485 € *
Available in 5 Days: 35 pcs. - if ordered today
Total Price:
39.45 € *
Price list
Quantity
Price per unit*
1 pcs.
39.4485 €
5 pcs.
37.4017 €
10 pcs.
34.9860 €
25 pcs.
31.9039 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, TAB62135501-040, TE Connectivity

The TAB62135501-040 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.

Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) open end
Pin number 2 pole
Cable length 4 m
Colour purple
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Property Value
Country of origin CN
Customs tariff number 85444290
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
