TAA754A5501-060 | TE Connectivity

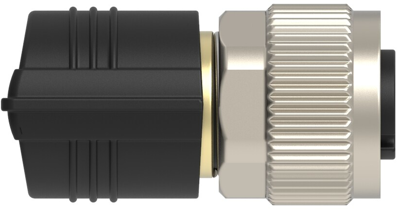

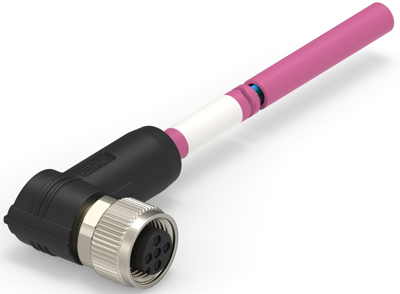

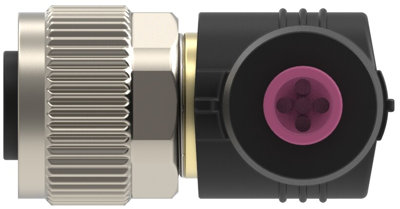

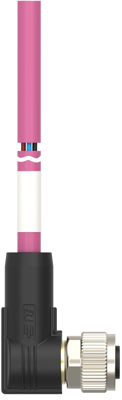

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 6 m, PUR, purple, 4 A, TAA754A5501-060
Order No.: 72P4043
EAN: 4099891673277
MPN:
TAA754A5501-060
Unit Price (€ / pc.)
44.6131 € *
Standard delivery time from the manufacturer is: 30 Weeks
Sensor actuator cable, TAA754A5501-060, TE Connectivity
The TAA754A5501-060 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 6 m | |
| Colour | purple | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
