TAA753A5501-002 | TE Connectivity
Sensor actuator cable, M12-cable socket, straight to open end, 5 pole, 1 m, PUR, purple, 4 A, TAA753A5501-002
Order No.: 38P9311
MPN:
TAA753A5501-002
Unit Price (€ / pc.)
21.9555 € *
Available in 5 Days: 58 pcs. - if ordered today
Total Price:
21.96 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9555 €
5 pcs.
20.8250 €
10 pcs.
19.4803 €
25 pcs.
17.7667 €
*incl. VAT plus shipping costs
Subject to prior sale

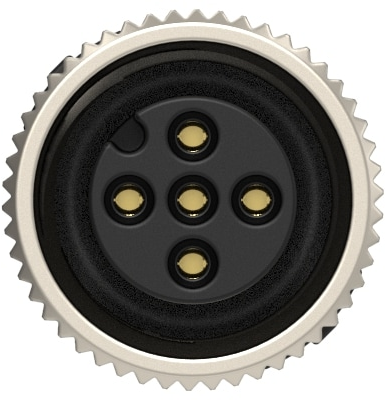

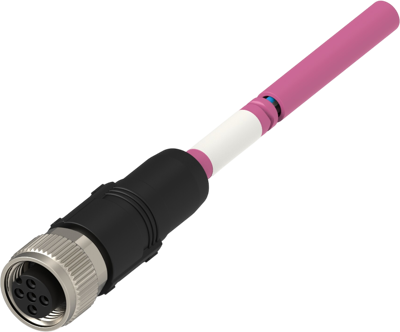

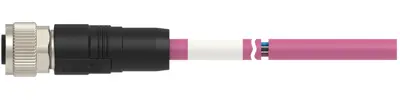

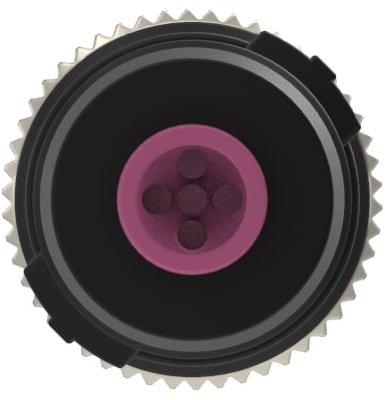

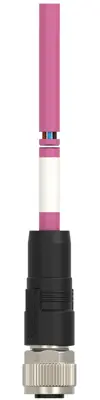

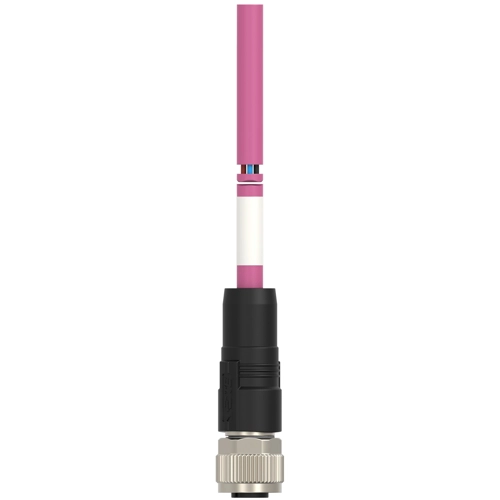

M12 sensor actuator cable, TAA753A5501-002, TE Connectivity
M12 Pigtail Cable Assembly, 5 Position, Cable Assembly Length 1 m, Industrial Fieldbus, DeviceNet, A Code, M12 Socket End A, Shielded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 1 m | |
| Colour | purple | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
