T4151220008-002 | TE Connectivity

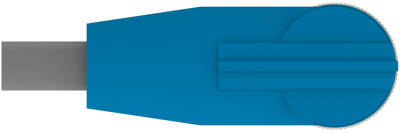

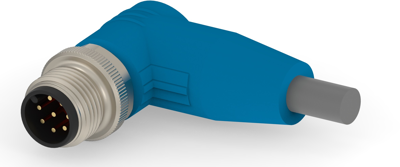

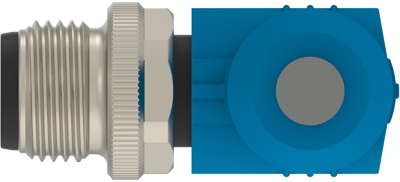

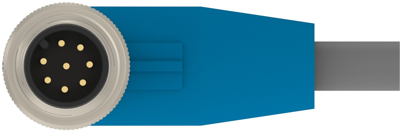

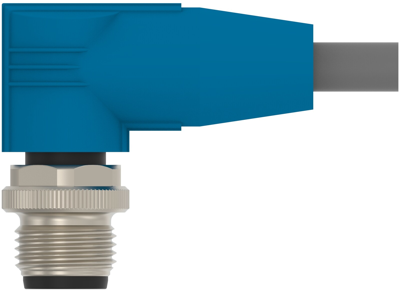

Sensor actuator cable, M12-cable plug, angled to open end, 8 pole, 1 m, PUR, gray, 2 A, T4151220008-002
Order No.: 38P9456
MPN:
T4151220008-002
Unit Price (€ / pc.)
19.5398 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
19.54 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5398 €
10 pcs.
18.1475 €
25 pcs.
16.9337 €
50 pcs.
15.3986 €
*incl. VAT plus shipping costs
Subject to prior sale
M12 sensor actuator cable, T4151220008-002, TE Connectivity
M12 Pigtail Cable Assembly, 8 Position, Cable Assembly Length 1 m, Sensor/Actuator, A Code, M12 Plug End A, Single Ended, Nylon GF.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable plug, angled | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Cable length | 1 m | |
| Colour | gray | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
